Keychron Q8 / Q8 Pro / Q8 Max Acoustic Upgrade Kit – Keychron Canada

Keychron Q8 / Q8 Pro / Q8 Max Acoustic Upgrade Kit

SKU: AUK-3
$16.00

Compatible Keyboard
Material

Notify Me When Available
Please drop your email on "Notify Me When Available" if the product model is out of stock

Keychron Q8 / Q8 Pro / Q8 Max Acoustic Upgrade Kit

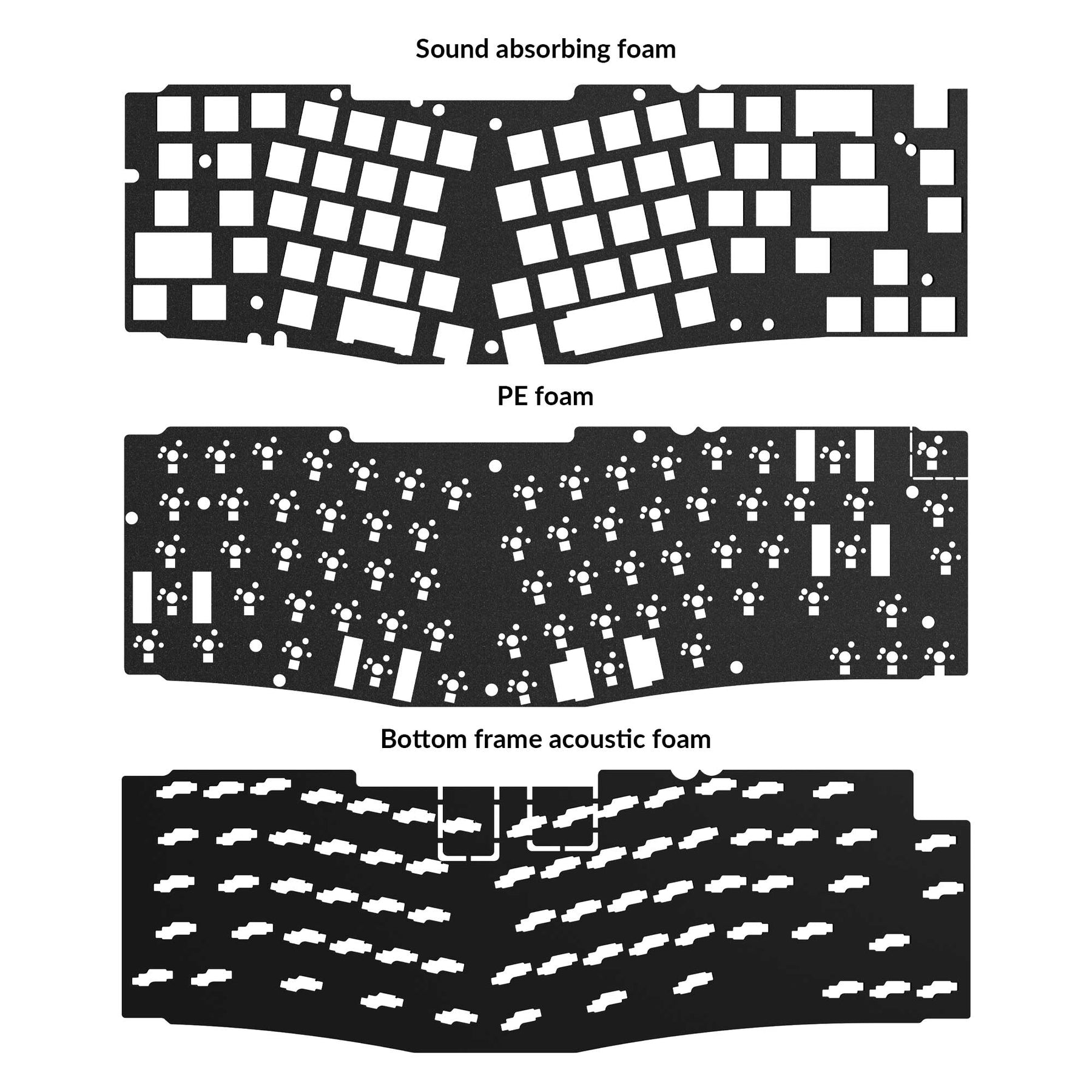

Want to optimize your Q8 / Q8 Pro / Q8 Max keyboard typing experience? Try this upgrade kit! Made of Poron & XPE material, the kit includes sound-absorbing foam, PE foam, and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.

Keychron Q8 / Q8 Pro / Q8 Max Acoustic Upgrade Kit

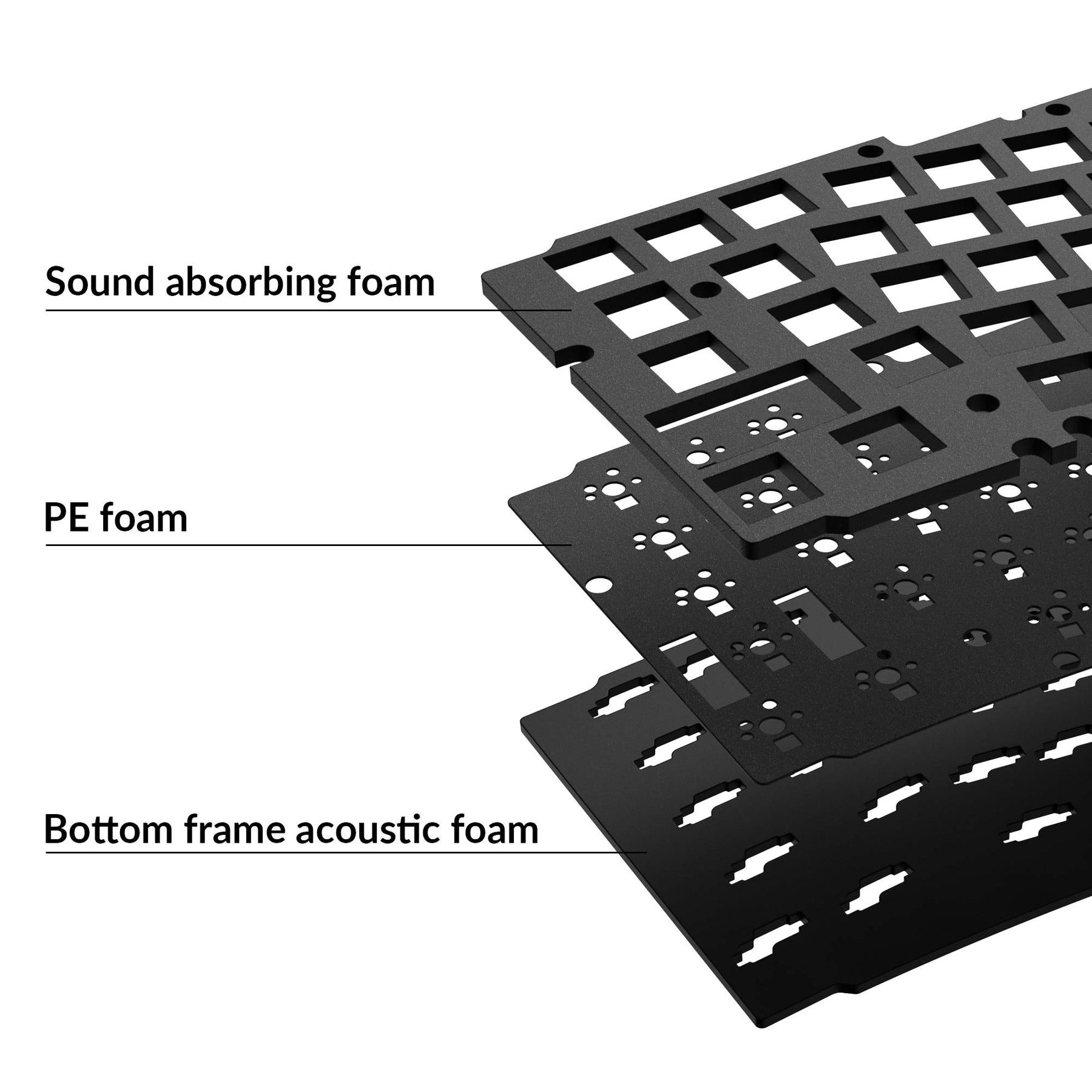

Foam modding the Q8 / Q8 Pro / Q8 Max with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.

Foam mod the Q8 Pro with the acoustic upgrade kit

How to modify your Q8 / Q8 Pro / Q8 Max with this kit?

The entire keyboard needs to be taken apart for kit installation. You can refer to this video for disassembling guide first and then watch the following clip for kit installation.

00:00: Apply the PE foam on the keyboard PCB.
00:29: Place the sound absorbing foam between the plate and the PCB.
00:50: Place the acoustic foam on the bottom case.

Specs

Package Contents MaterialThicknessSizeCompatible keyboard
1x Sound absorbing foamPoron3.5 mm339.68*112.90 mmKeychron Q8 / Q8 Pro / Q8 Max ANSI layout
1x PE foamXPE0.5 mm339.68*112.90 mmKeychron Q8 / Q8 Pro / Q8 Max ANSI layout
1x Bottom frame acoustic foamPoron2.5 mm344.08*114.90 mmKeychron Q8 / Q8 Pro / Q8 Max ANSI layout
4x Gasket

*XPE foam is a new high-grade PE material with better mechanical and physical properties in stability, durability, and insulation effects.
