Keychron Q14 Pro Acoustic Upgrade Kit

SKU: AUK-4
$16.00

Compatible Keyboard
Material

Notify Me When Available
Please drop your email on "Notify Me When Available" if the product model is out of stock

Keychron Q14 Pro Acoustic Upgrade Kit

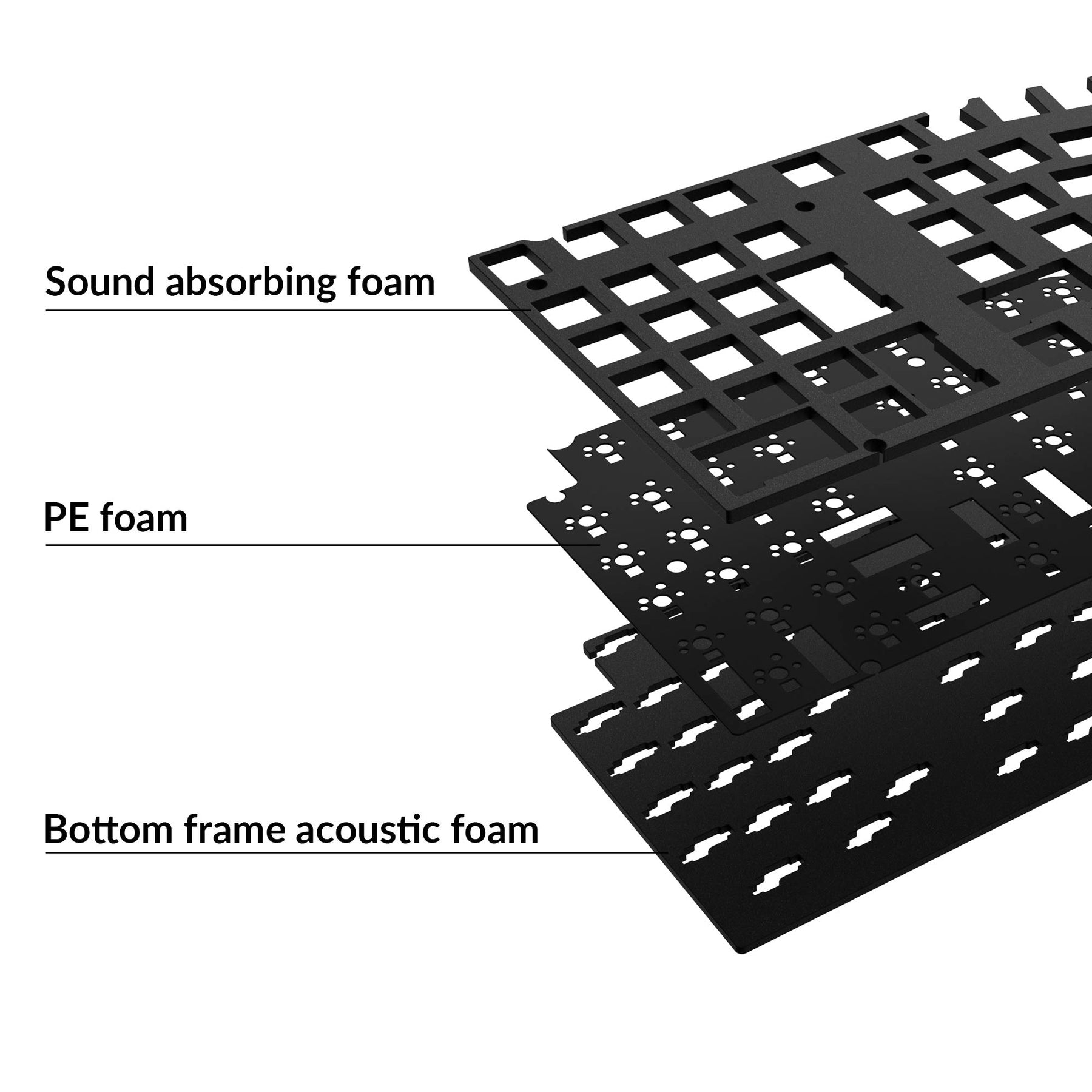

Want to optimize your Q14 Pro keyboard typing experience? Try this upgrade kit! Made of Poron & XPE material, the kit includes sound-absorbing foam, PE foam, and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.

Keychron Q14 Pro Acoustic Upgrade Kit

Foam modding the Q14 Pro with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.

Foam mod the Q14 Pro with the acoustic upgrade kit

How to modify your Q14 Pro with this kit?

The entire keyboard needs to be taken apart for kit installation. You can refer to this video for disassembling guide first and then watch the following clip for kit installation.

00:00: Apply the PE foam on the keyboard PCB.
00:29: Place the sound absorbing foam between the plate and the PCB.
00:50: Place the acoustic foam on the bottom case.

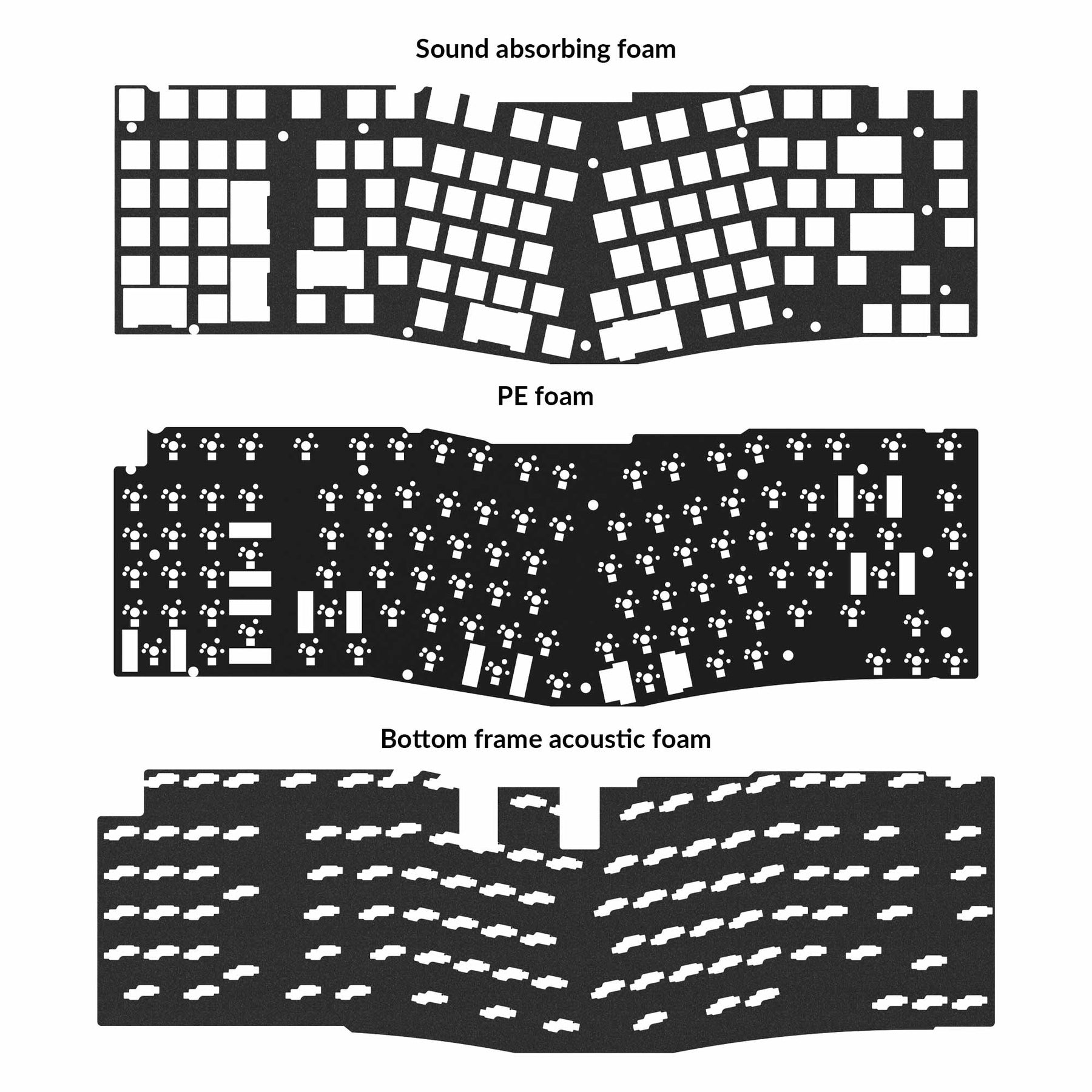

Specs

Package Contents MaterialThicknessSizeCompatible keyboard
1x Sound absorbing foamPoron3.5 mm427.25*138.21 mmKeychron Q14 Pro ANSI layout
1x PE foamXPE0.5 mm427.25*139.00 mmKeychron Q14 Pro ANSI layout
1x Bottom frame acoustic foamPoron2.5 mm429.09*135.65 mmKeychron Q14 Pro ANSI layout
4x Gasket

*XPE foam is a new high-grade PE material with better mechanical and physical properties in stability, durability, and insulation effects.
