Keychron V7 QMK Custom Mechanical Keyboard(US ANSI Layout) – Keychron Canada

Keychron V7 QMK Custom Mechanical Keyboard(US ANSI Layout)

SKU: V7-A1
$118.00

Type
Color
Switches

Notify Me When Available
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

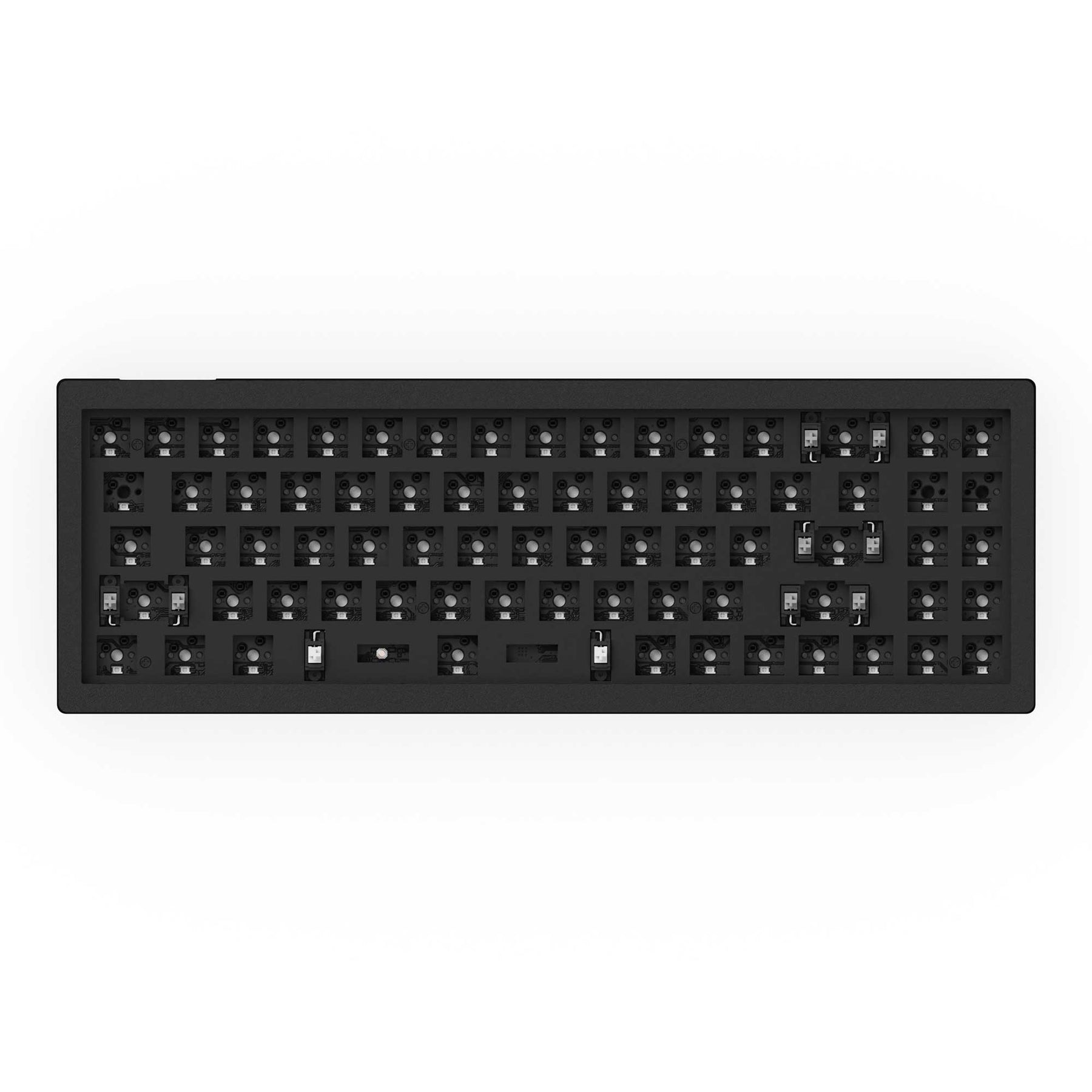

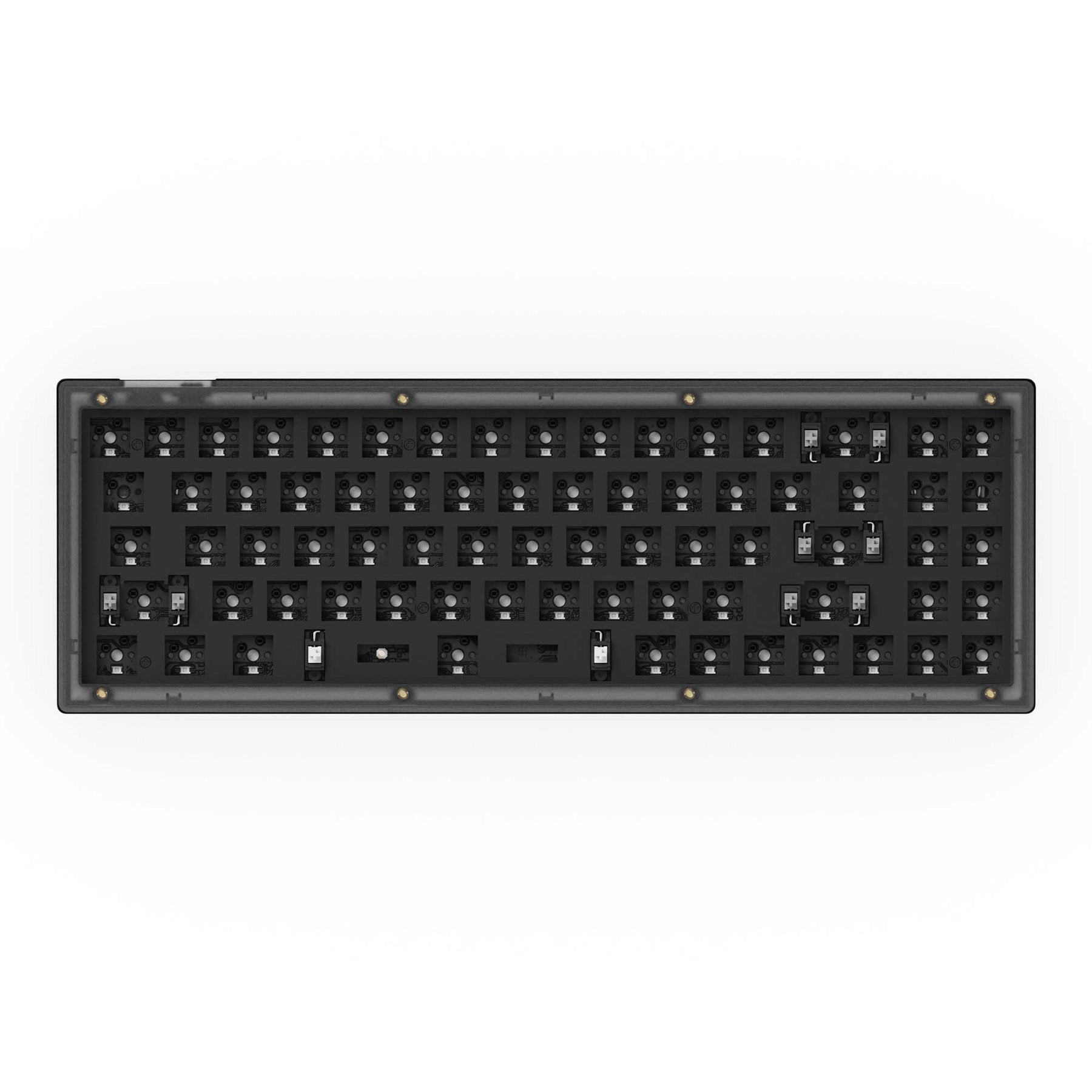

The barebone version does not include the keycaps and switches.
No discount codes can be used for V7.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V7 Custom Mechanical Keyboard

Keychron V7

Featuring an ultra-compact 70% layout and many premium designs like double-shot PBT keycaps, screw-in stabs, etc., V7 is a QMK/VIA custom mechanical keyboard to maximize your productivity and level up your personalized typing experience!

Keychron V7 Custom Mechanical Keyboard

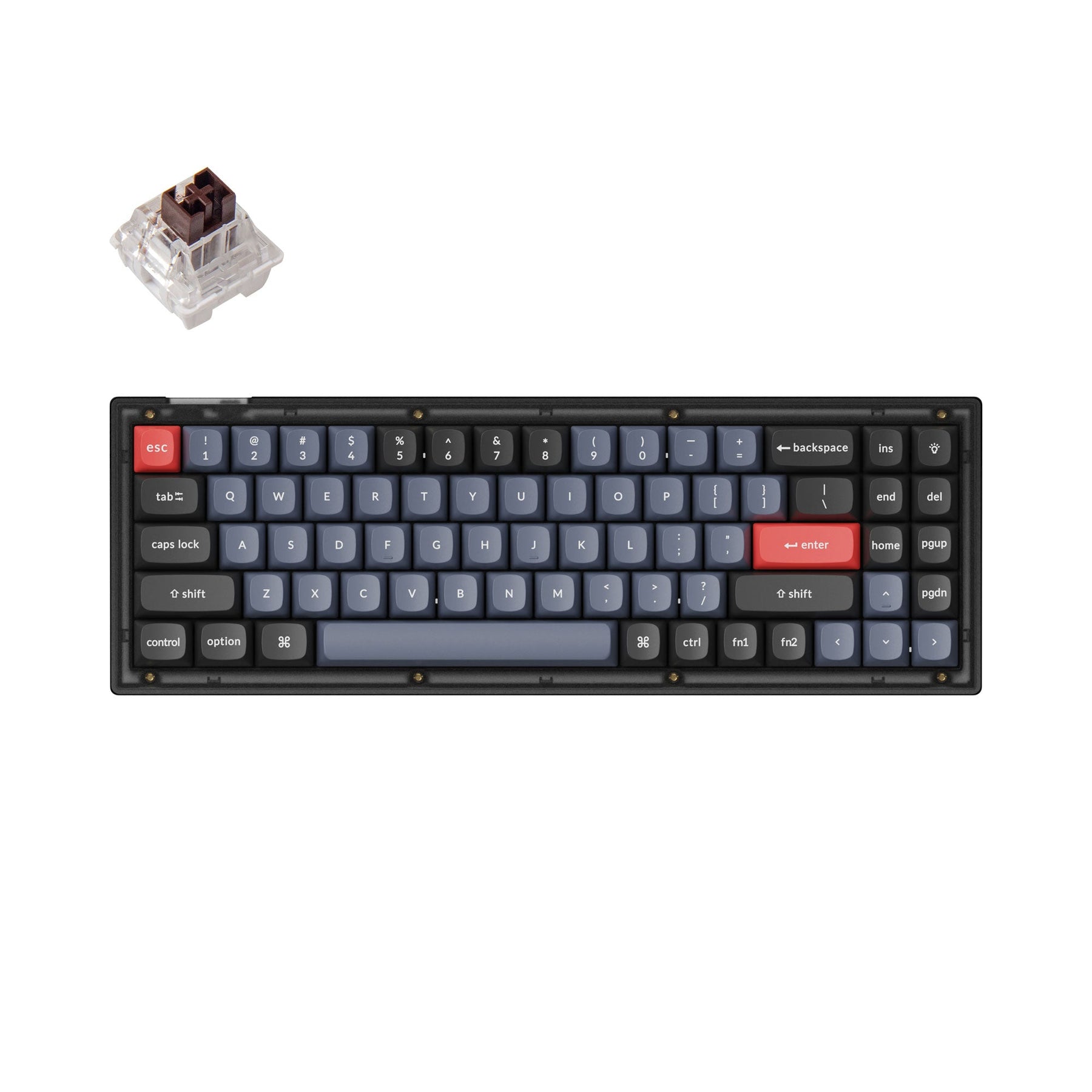

Frosted Black Version (Translucent)

Keychron V7 Custom Mechanical Keyboard

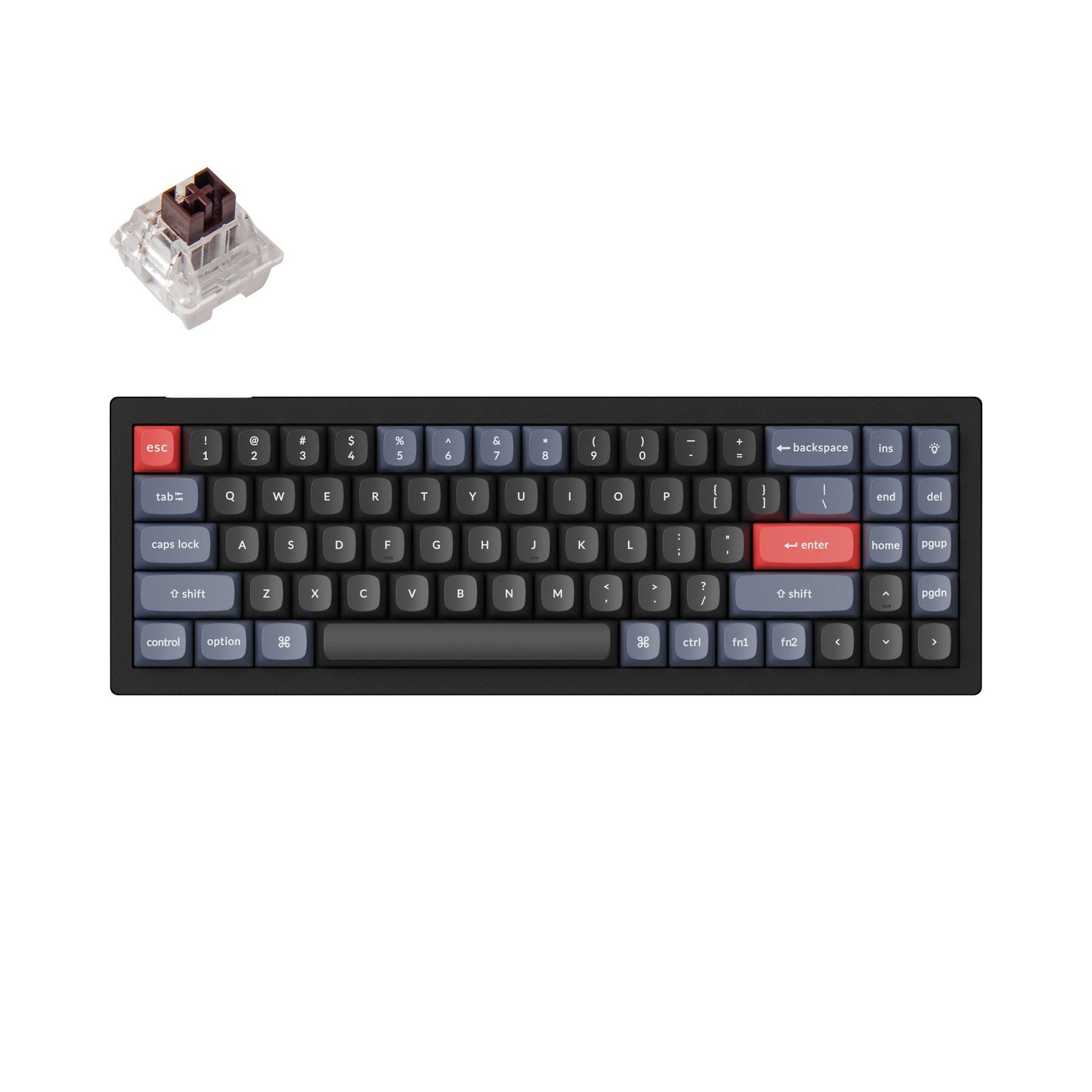

Carbon Black Version (Non-transparent)

Features of Keychron V7 Custom Mechanical Keyboard

Choose the keycaps, switches and more accessories for your V7

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Keychron V7 Custom Mechanical Keyboard
Keychron V7 Custom Mechanical Keyboard

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Keychron V7 Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-Shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT Keychron V7 Custom Mechanical Keyboard
Keychron V7 Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V7 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program with QMK & Launcher
Program with QMK & Launcher

Program with QMK & Launcher

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program the keyboard with Launcher
Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone US layout of Keychron V2 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron V1 Gateron K Pro Switch Features
Keychron V2 All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V7 also supports third-party screw-in PCB stabilizers.

What's in the box?

Keychron V2 75% Custom Mechanical Keyboard Barebone Version
Keychron V2 75% Custom Mechanical Keyboard Barebone Version

Frequently bought together (Add-on)

Please select the matching variant for your product.

Q12 Brass Plate
Q12 Brass Plate
Q12 Brass Plate
Q12 Brass Plate

Q12 Brass Plate

Q12 PC Plate
Q12 PC Plate
Q12 PC Plate
Q12 PC Plate

Q12 PC Plate

Q12 Aluminum Plate
Q12 Aluminum Plate
Q12 Aluminum Plate
Q12 Aluminum Plate

Q12 Aluminum Plate

V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate

V6 PC Plate

V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate

V6 Aluminum Plate

V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate

V6 Brass Plate

V4 FR4 Plate
V4 FR4 Plate

V4 FR4 Plate

V4 Brass Plate
V4 Brass Plate
V4 Brass Plate
V4 Brass Plate

V4 Brass Plate

Specs

Width117 mm
Length341.85 mm
Front Height19.54 mm (without keycaps)
Back Height25.75 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 8.01° / 11°
Weight845 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
PlateSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightSouth-facing RGB LED
SwitchKeychron K Pro (Fully Assembled Version)
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Keychron V7 User Guide

Learn more about the Keychron V7 such as the V7 shortcuts, assembling the V7, factory reset, and more in the FAQ section.
