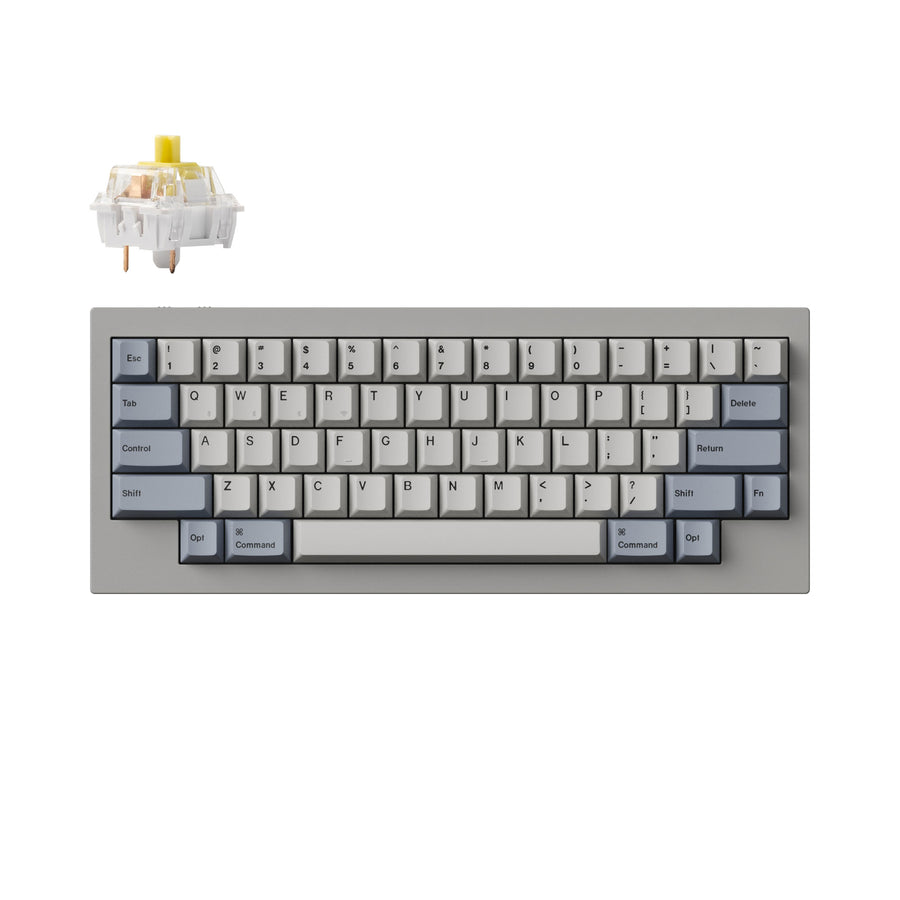

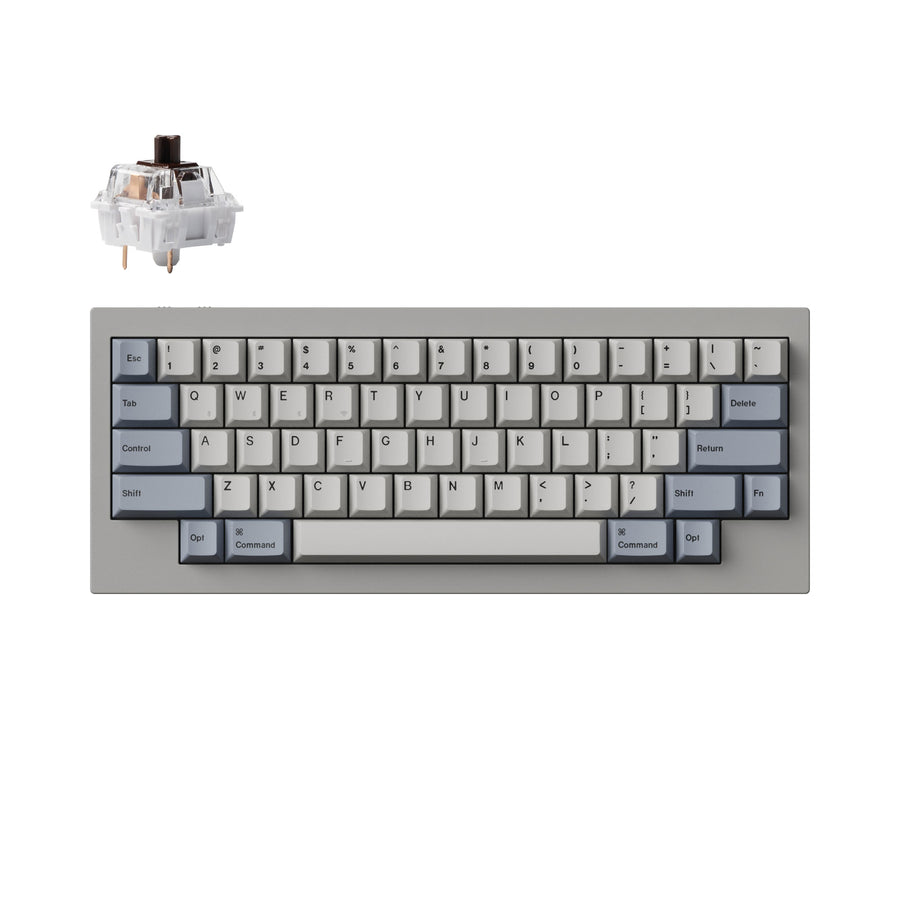

Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)
Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout) - Barebone / Retro (Hot-Swappable) / Barebone is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- The keyboard PCB, screw-in stabs, and the PC plate
- Cherry Dye-Sub PBT keycaps (included Mac & Windows keycaps).
- Gateron Jupiter switches

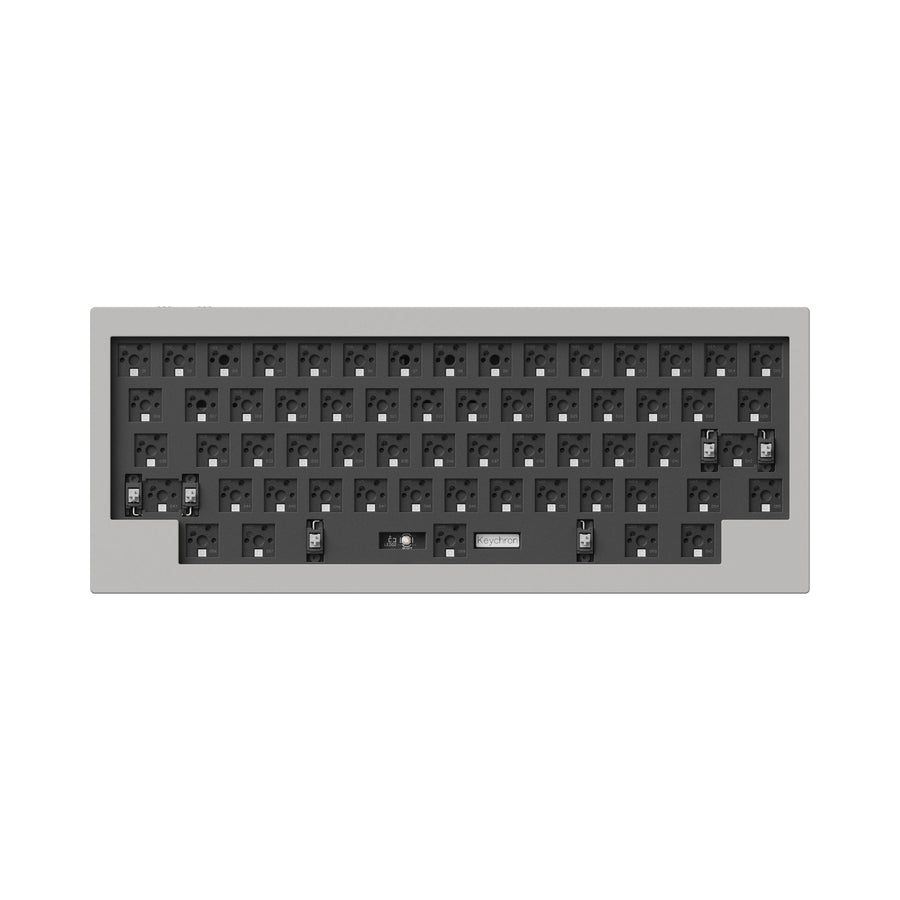

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q60 Max.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard (US AN...
Keychron Q60 Max
The Q60 Max Keyboard offers 2.4G wireless, Bluetooth, and Type-C wired connections, you can seamlessly pair the keyboard with a computer, tablet, or smartphone. The special 60% HHKB layout, combined with the 1000Hz polling rate, provides an efficient and ergonomic design that will enhance your typing efficiency.
Choose the switches and more keyboard accessories for your Q60 Max
2.4 GHz & Bluetooth Connection
Get ready for a brand new gaming experience with the Q60 Max’s 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the Q60 Max with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.
A Refined Piece Of Metal Art
The keyboard case is made from strong and durable 6063 aluminum, precisely shaped through CNC machining for high-quality construction. It features a powder coating finish that surpasses traditional painting in resisting wear, tear, chipping, and scratching. This comprehensive manufacturing process results in a sturdy and visually appealing keyboard case, ideal for regular use.
Significantly Enhanced Acoustic Foams
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
Double Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.
Cherry Profile Dye-Sub PBT Keycaps
Q60 Max comes in Cherry Profile for a classic feel and features dye-sublimated technology that ensures the legends are beautifully printed on the keycaps, while the legends will not shine or wear out for decades. And it's fully compatible with MX mechanical switches.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q60 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program with QMK & Launcher
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Special Extra Keycaps
Q60 Max is equipped with special extra keycaps, two "System" Keycaps and two "Alt" Keycaps, for the Windows system to better satisfy your needs.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install KSA or Cherry-profile alternative keycaps on the keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q60 Max also supports third-party screw-in PCB stabilizers.
Hot-Swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
What's in the box?
Frequently bought together (Add-on)
Please select the matching variant for your product.
Specs
| Width | 121 mm |
|---|---|
| Length | 303.4 mm |
| Front Height | 20 mm (without keycaps) |
| Back Height | 33.8 mm (without keycaps)
|
| Feet Height | 2.7 mm |
| Angle | 6.6° |
| Aluminum Case Finishing | Coating |
| Body Material | Full CNC aluminum |
| Plate | Steel |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Weight | 1519.6g (Fully Assembled Version)
1353g (Barebone Version) |
| Backlight | 22 types of RGB backlight options plus endless possibilities |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 30 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Bluetooth Version | 5.1 |
| Compatible System | Windows/macOS /Linux |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| Connectivity | 2.4 GHz/Bluetooth / Type-C wired |
| Bluetooth Device Name | Keychron Q60 Max |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switches | Gateron Jupiter (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Stabilizer | Screw-in PCB stabilizer |
| Charging Port | USB Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Operating Environment | -10℃ to 50℃ |
| Cable Length | 1.8 m |
| Charging Port | USB type-C |
| Bluetooth Operating Distance | Within 10 meters (Open space) |
Learn more about the Keychron Q60 Max such as the Q60 Max shortcuts, assembling the Q60 Max, factory reset, and more in the FAQ section.
