Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)

V2M-D1

Regular price $134.00
/
5 in stock

Type
Color
Switches
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches

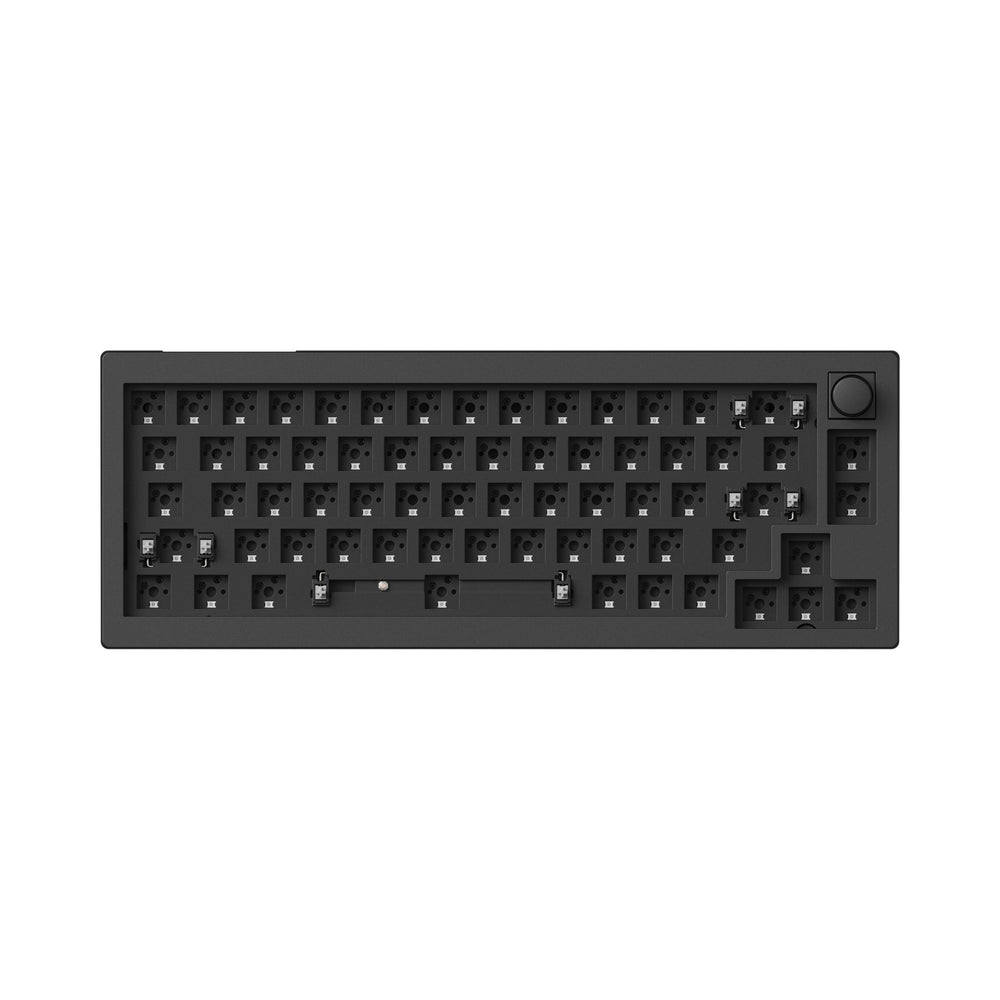

The barebone version does not include the keycaps and switches.
No discount codes can be used for V2 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Keychron V2 Max

The V2 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a compact 65% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V2 Max is designed for a personalized experience and enhanced typing comfort.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V2 Max via Bluetooth 5.1 to three devices.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Dual Receivers

For a better 2.4 GHz wireless experience, the V2 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V2 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V2 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Program V2 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Get the V1 keymap working on VIA

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.

 Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.

Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.

V1 Knob Version Keymap JSON Files

Get the V2 Max keymap working on VIA

Since the VIA code for the V2 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V2 Max keymap working on VIA.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

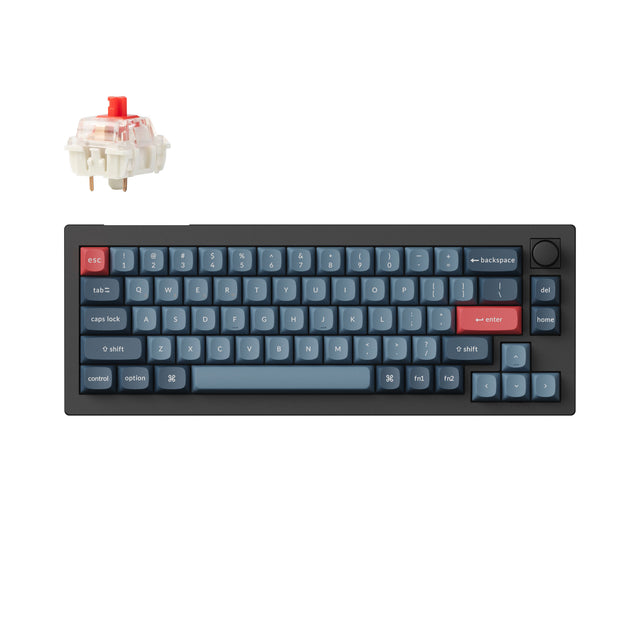

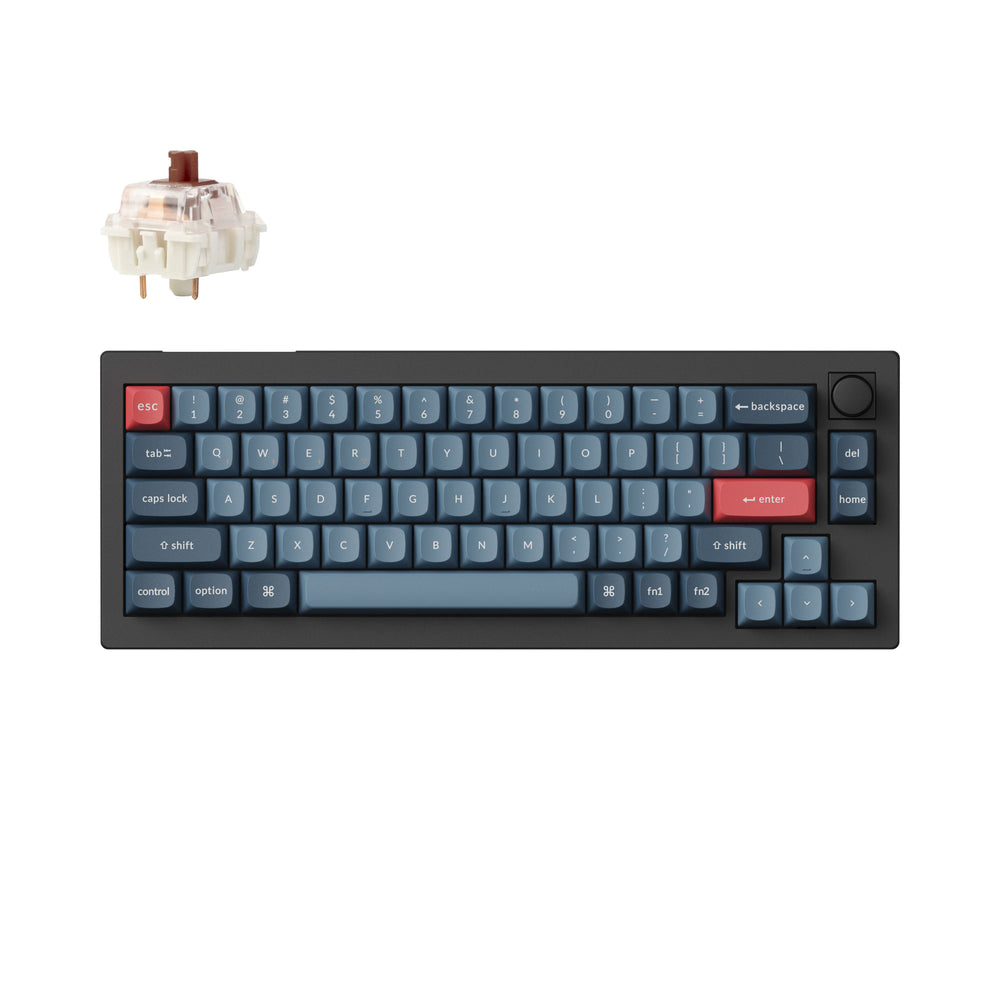

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

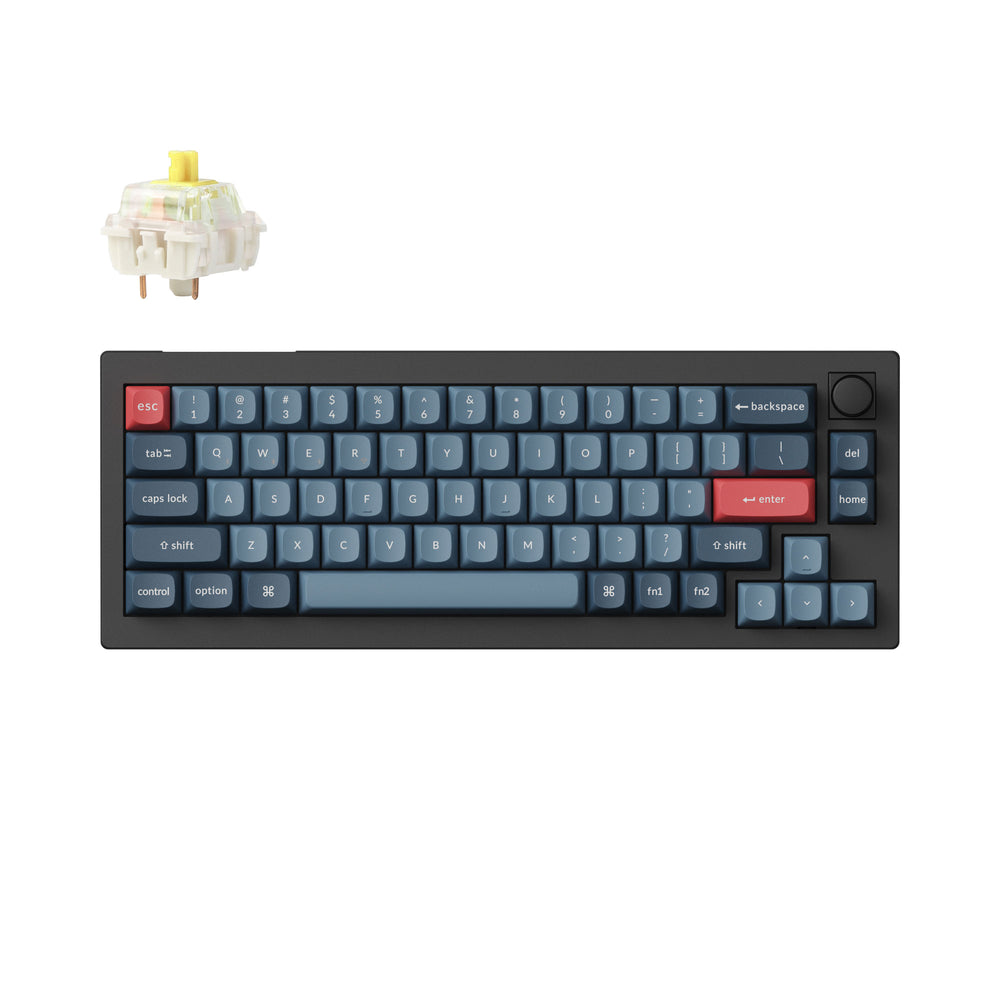

The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V2 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Specs

Width123.3 mm
Length329.9 mm
Front Height23 mm (without keycaps)
Back Height29.4 mm (without keycaps)
Feet Height2 mm
Angle3.5° / 7.91° / 10.88°
Weight 696 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
PlatePC
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount StyleGasket Mount Design
Bluetooth Device NameKeychron V2 Max
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Charging Time Around 5 hours
Bluetooth Version 5.1
Compatible SystemWindows/macOS/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
SwitchesGateron Jupiter (Fully Assembled Version)
BacklightSouth-facing RGB LED
StabilizerScrew-in PCB stabs
Charging PortUSB Type-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Keychron V2 Max User Guide

Learn more about the Keychron V2 Max such as the V2 Max shortcuts, assembling the V2 Max, factory reset, and more in the FAQ section.
