Keychron Gold-Plated Spring
Keychron Gold-Plated Spring - 40 G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

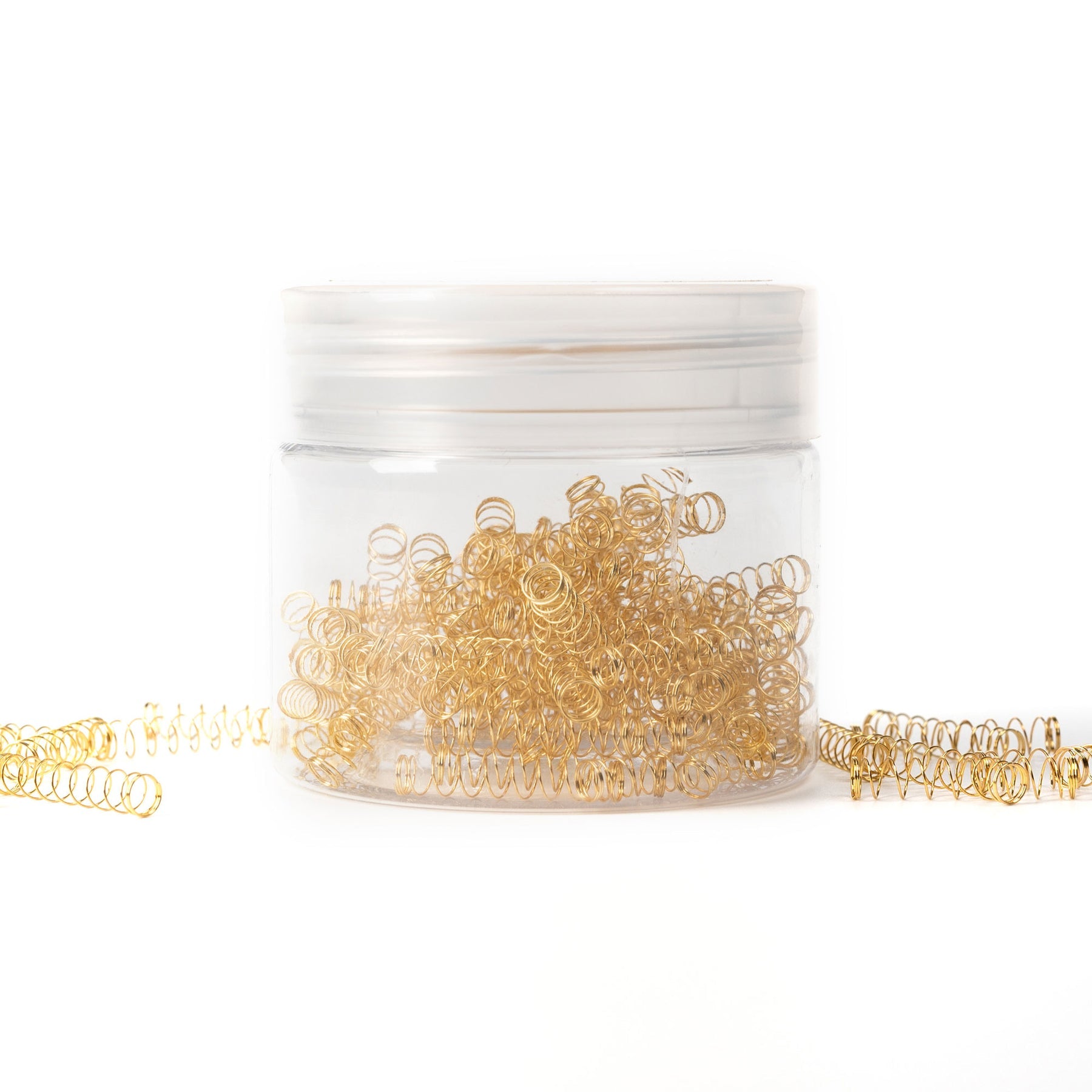

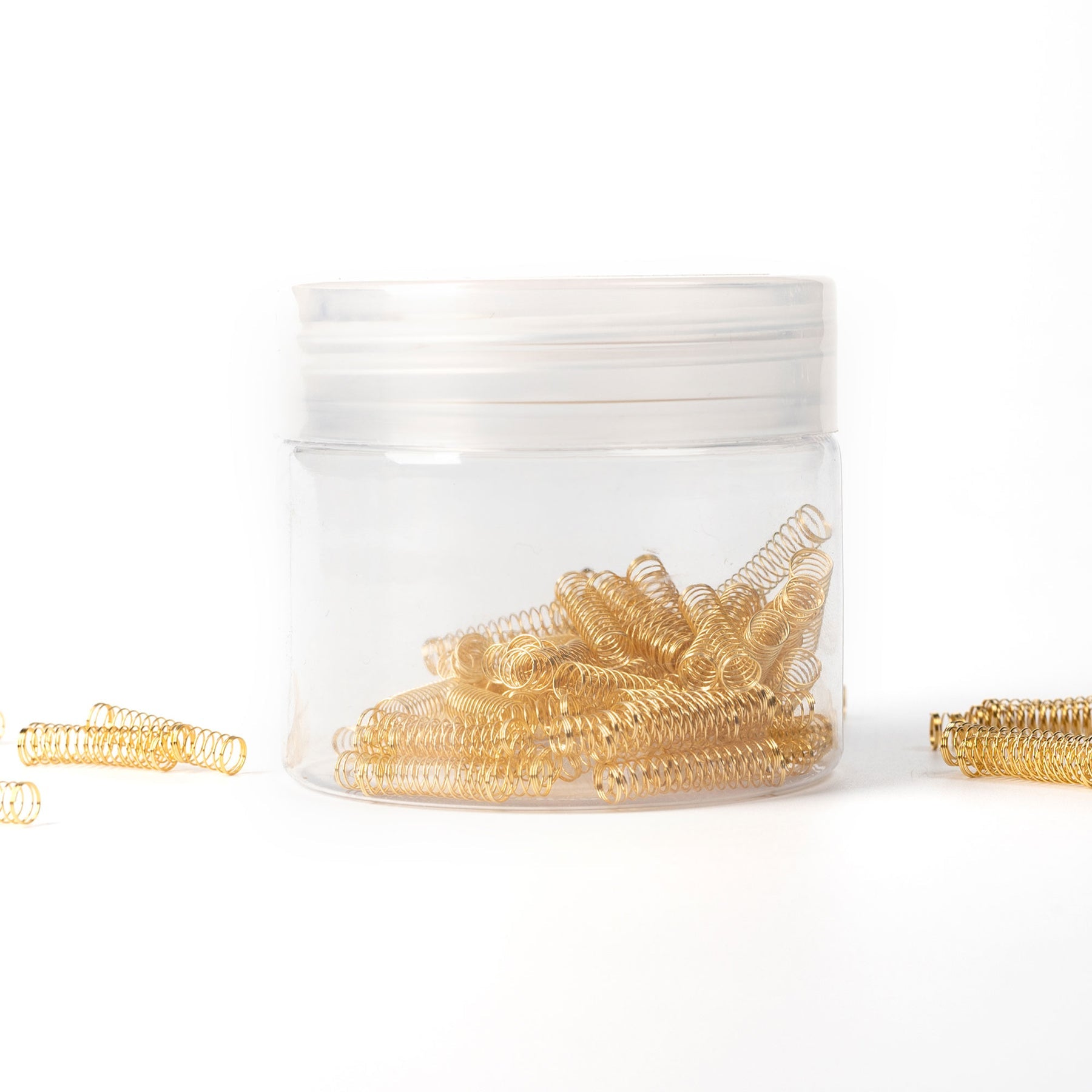

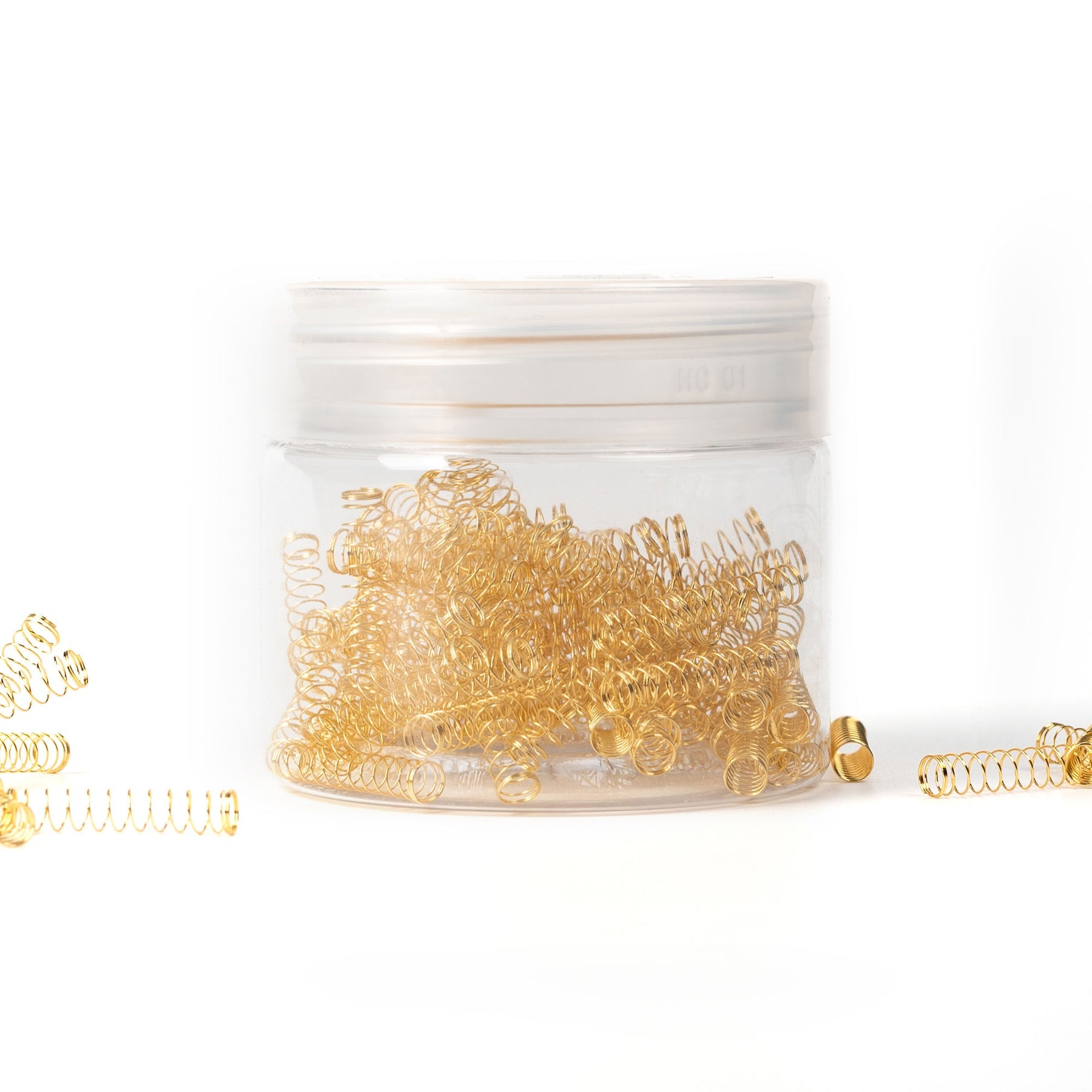

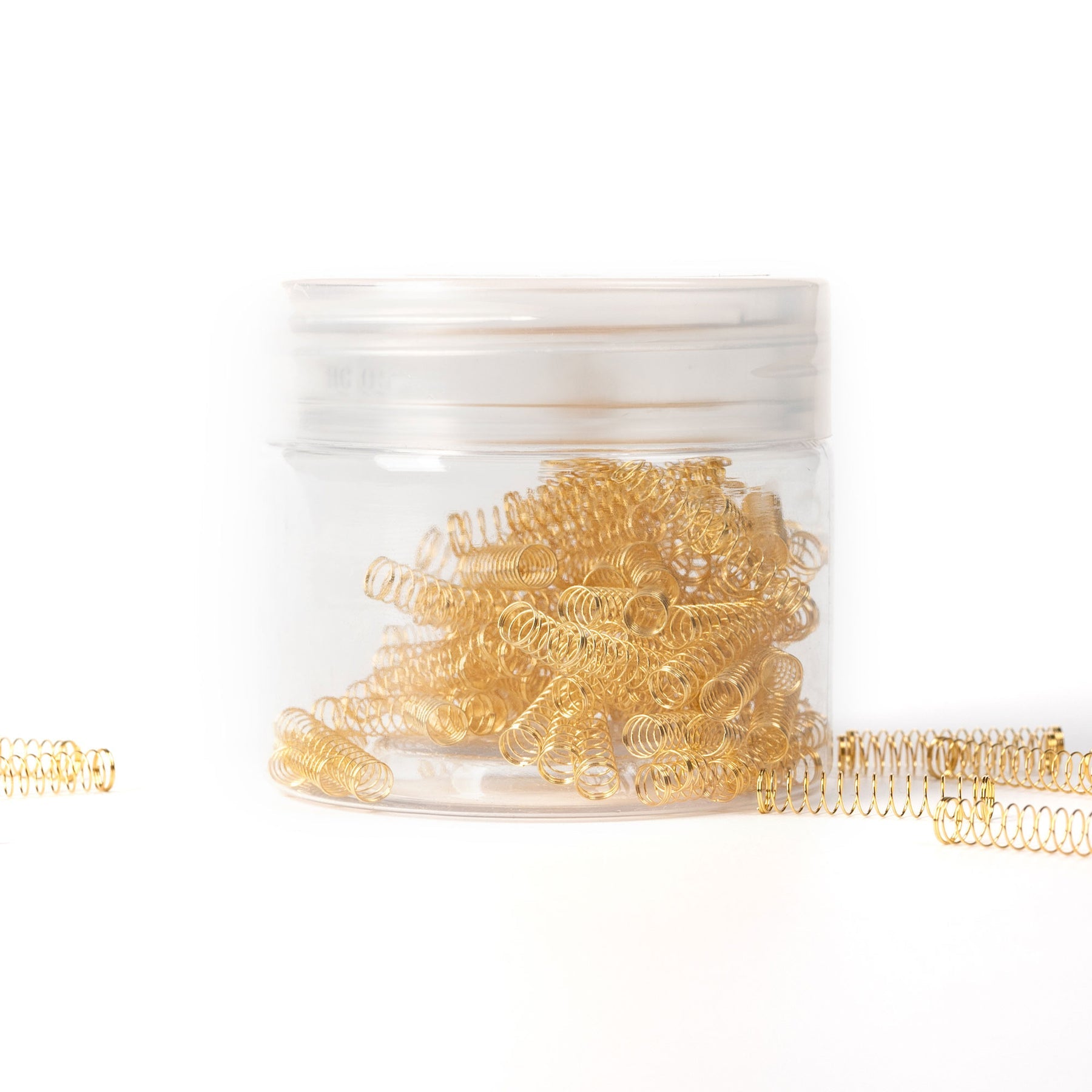

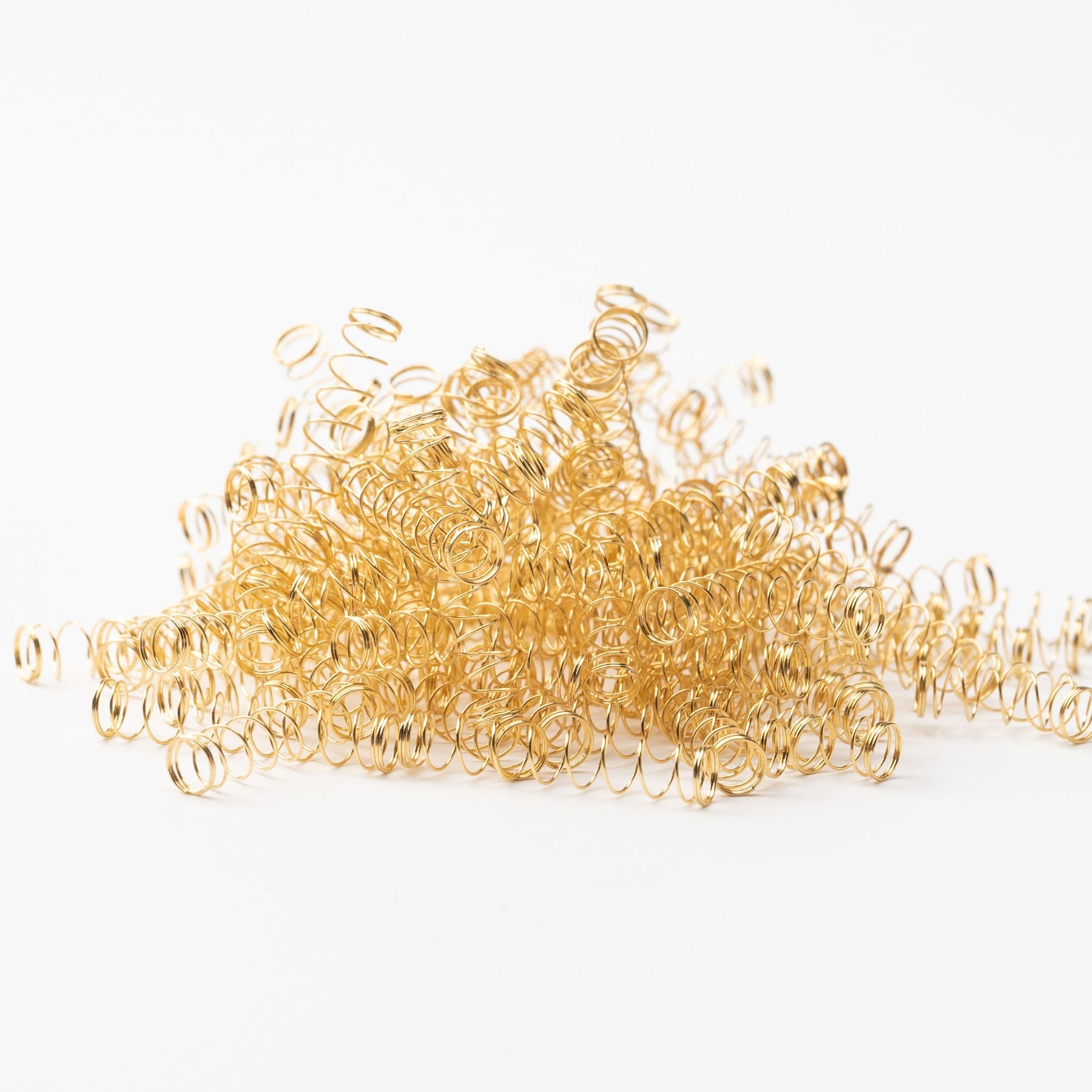

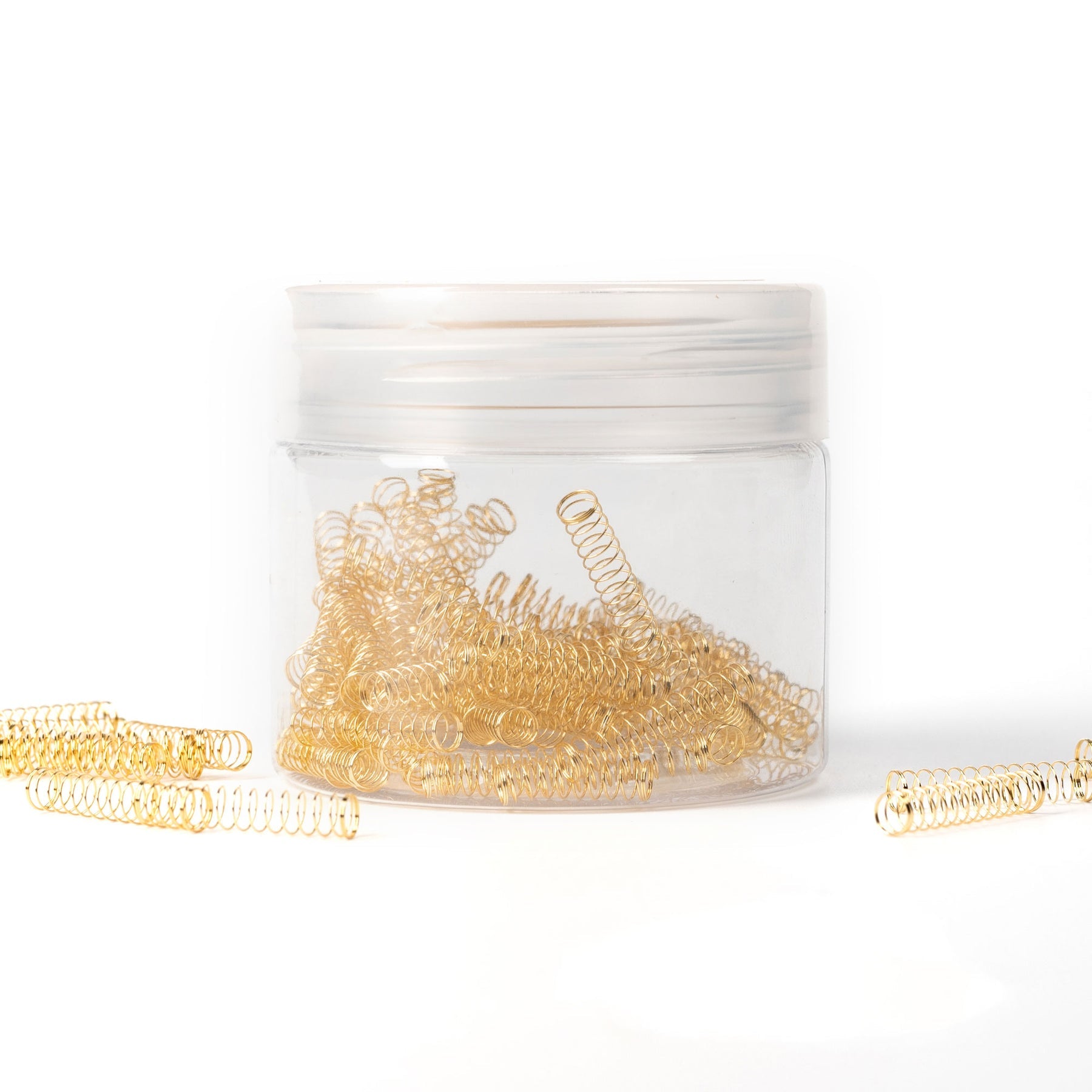

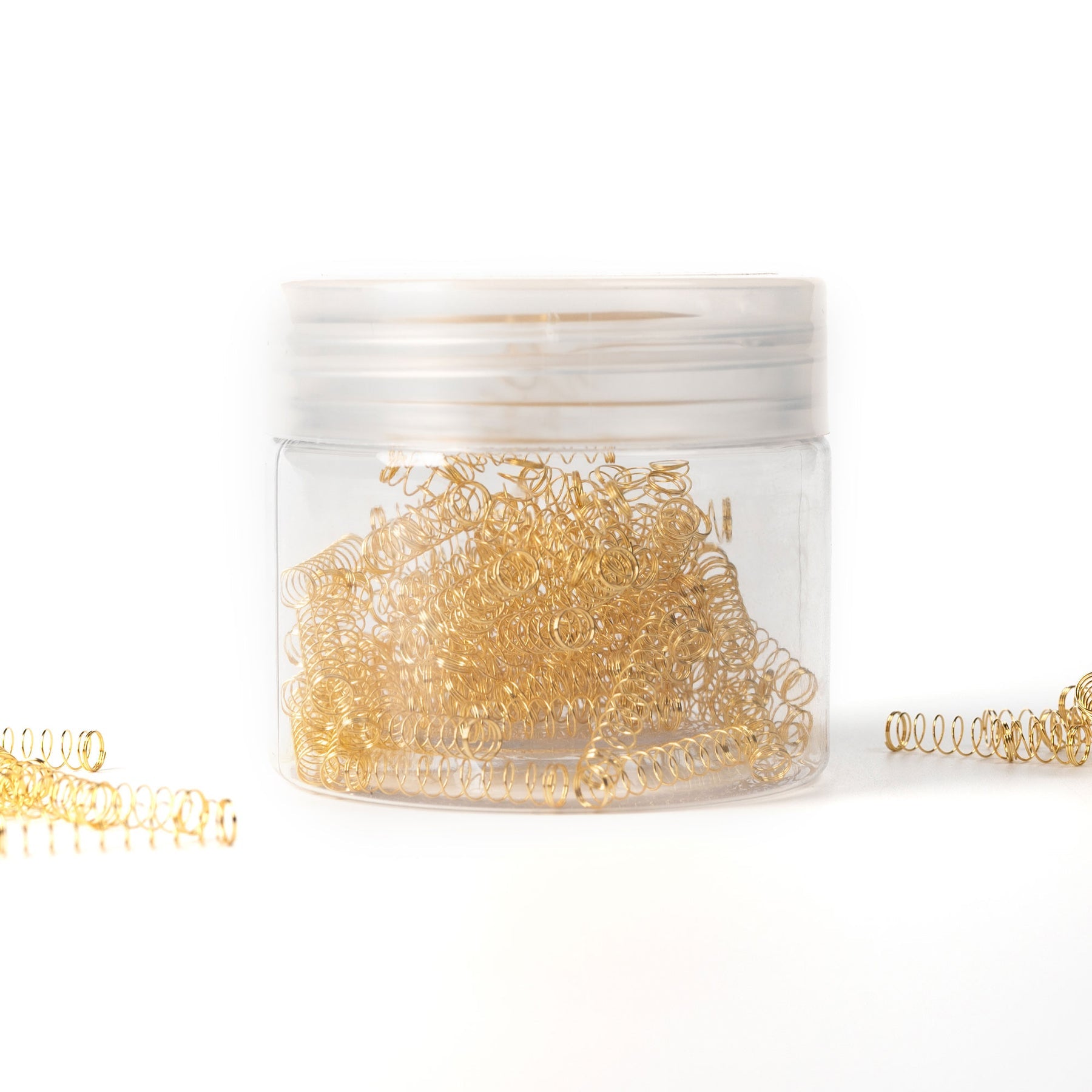

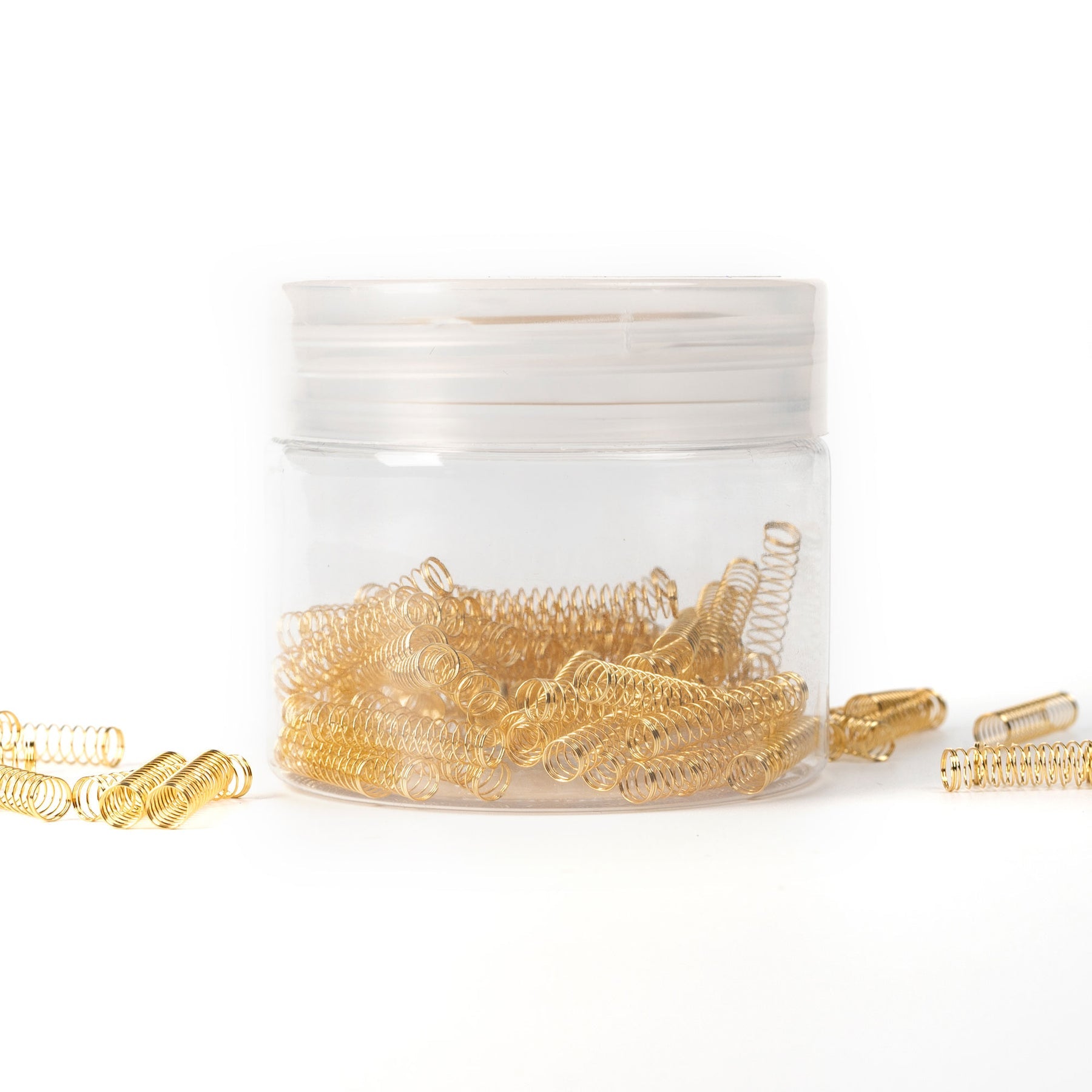

Each Keychron Gold-Plated Spring Set comes with 110 springs and a bottle.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Gold-Plated Spring
Do you want to switch up the feel of your switch without buying a new switch? The Keychron Gold-Plated Spring is your solution! This Gold-Plated Spring is a high-quality single-stage spring and it is available in several different spring weight options to help you find the perfect weight. These springs are compatible with most MX switches on the market.
Details
Assemble Your Switch!
You can choose the Bottom Case, Top Case, and Klube Lubricant to customize the linear switches with different colors and feels.
Keychron Gold-Plated Spring Specs
Product Name | Gold-Plated Spring 40 g | Gold-Plated Spring 50 g | Gold-Plated Spring 60 g | Gold-Plated Spring 70 g | Gold-Plated Spring 80 g | Gold-Plated Spring 90 g | Gold-Plated Spring 100 g |
---|---|---|---|---|---|---|---|
Material | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated |
Free Length | 17.5 mm | 19.5 mm | 20 mm | 21 mm | 21 mm | 21 mm | 21 mm |
Coil Diameter | 3.85 mm | 3.85 mm | 3.85 mm | 3.85 mm | 3.85 mm | 3.85 mm | 3.85 mm |
Bottom Out Weights | 40±10 gf | 50±10 gf | 60±10 gf | 70±10 gf | 80±10 gf | 90±10 gf | 100±10 gf |
Note: Due to differences in coil diameter and size, these springs are incompatible with the Low Profile and Kailh Box switch series. Please confirm the compatible spring size of your switch before purchasing.
