Gateron Oil King Switch

Gateron Oil King Switch

G60

Regular price $90.00
/

Option
Quantity of one set

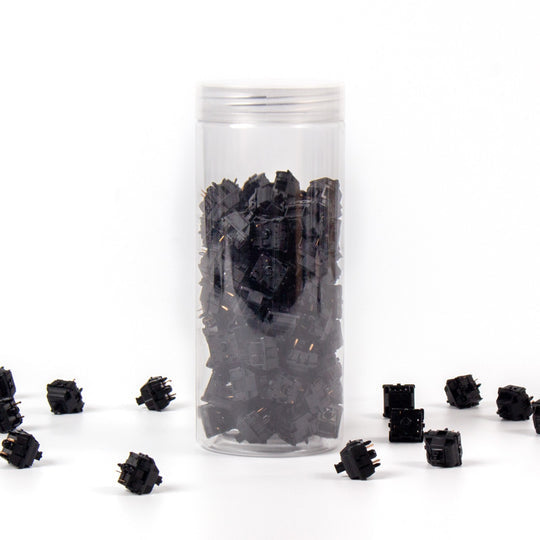

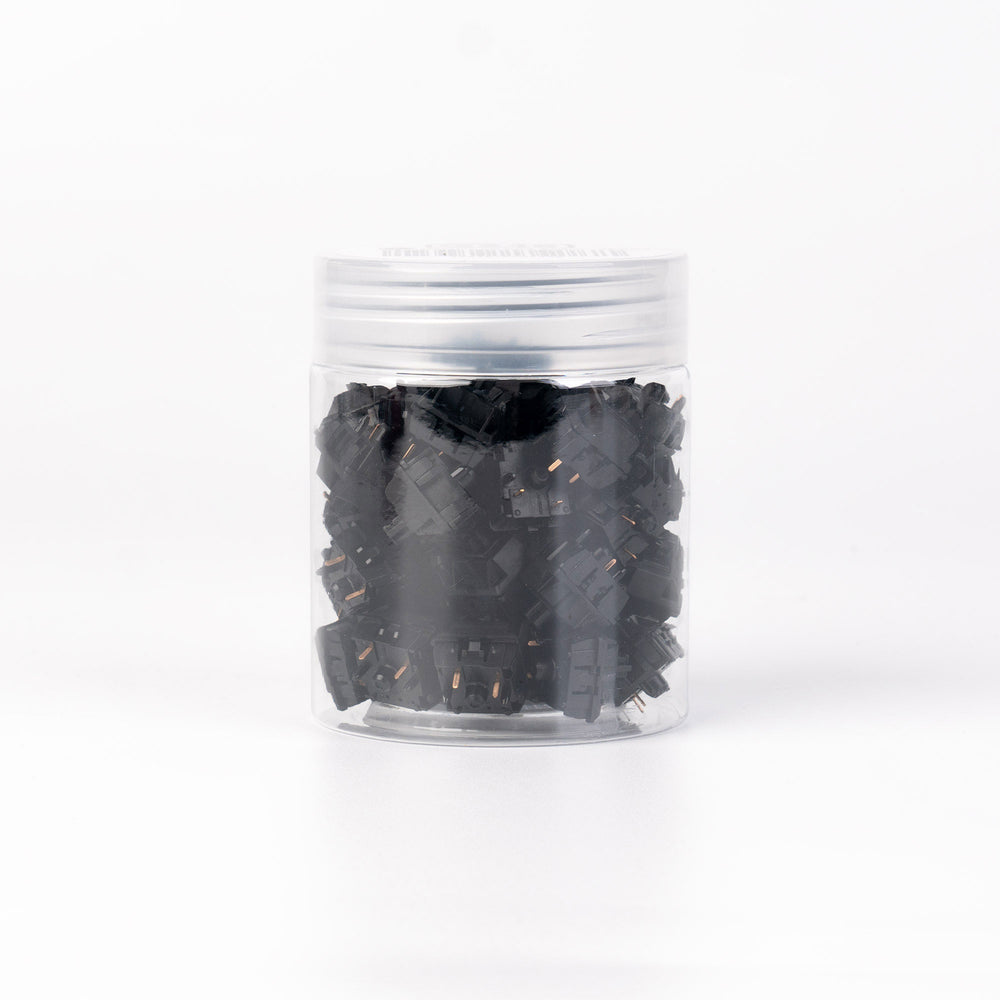

Each Gateron Oil King Switch Set comes with 110 switches and the bottle.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Linear Typing Feel

The Oil King switch is the newest mechanical linear switch that features a Nylon PA66 upper housing, a housing base made of secret black Ink housing material, and a POM stem. The stem in the upper housing is fantastic with ultra-stability and almost no wobbliness. Compared to CJs, it has a deeper patch sound.

Gateron Oil King Switch
Inside Gateron Oil King Switch

Gold Contact

The gold contact improves anti-oxidation performance and protects the key switch from corrosion, guaranteeing the switch will last for up to 60 million cycles.

Pre-Lubed

The Oil King switch is pre-lubed to help avoid spring ping and unnecessary friction and hitches.

Gateron Oil King Switch
Black Plated Spring

Black Plated Spring

The Oil King switch incorporates a long 20 mm black plated spring allowing for 55 gf actuation and 80 gf bottom-out weight, creating a rather unique and super-smooth typing feeling.

Features

TypeLinear
Operation Force55±5 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max
Spring20 mm
Sound LevelLow
Operation LifeUp to 60 m cycles
Suitable ForGaming / Office
Typing FeelVertical, strong, actuation force, hard rebound
Gateron Oil King Switch Force Travel Diagram

Specs

Product NameGateron Oil King Linear Switch
StemPOM, MX stem
Upper HousingNylon PA66
Housing BaseProprietary "INK" blend
SpringSpring steel
Pins5-Pin switch
LubricationYes
SMD LED SupportYes (only support unraised SMD-LED)
Gateron Oil King Switch Layout of PCB

Notice: Due to the housing design of the Gateron Oil King switches, the backlight effect will not be that visible.

Compatible Keyboards

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
