Keychron Q1 V2
ISO Layout Versions
A fully customizable 75% layout mechanical keyboard featured QMK / VIA support; designed with all the premium features with unlimited possibilities.
The Q1 is a revolutionary all-metal keyboard with customizable capabilities for every switch, keycap, stabilizer, knob, and even the plate. It’s designed for a personalized experience and premium typing comfort.
Customize Your Q1
Choose the keycaps, switches, and more accessories for your Q1 ISO layout keyboard

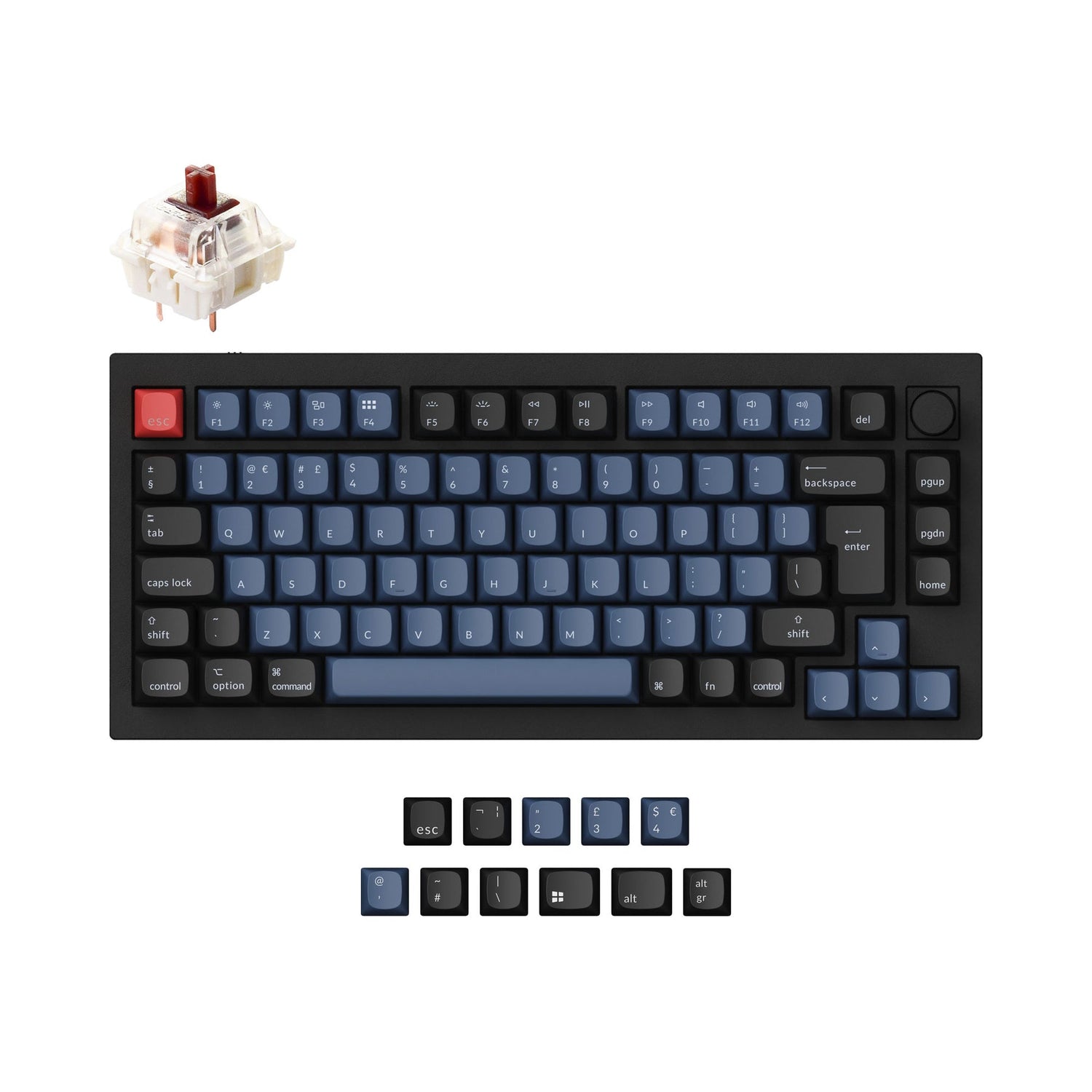

Q1 ISO Layout Version

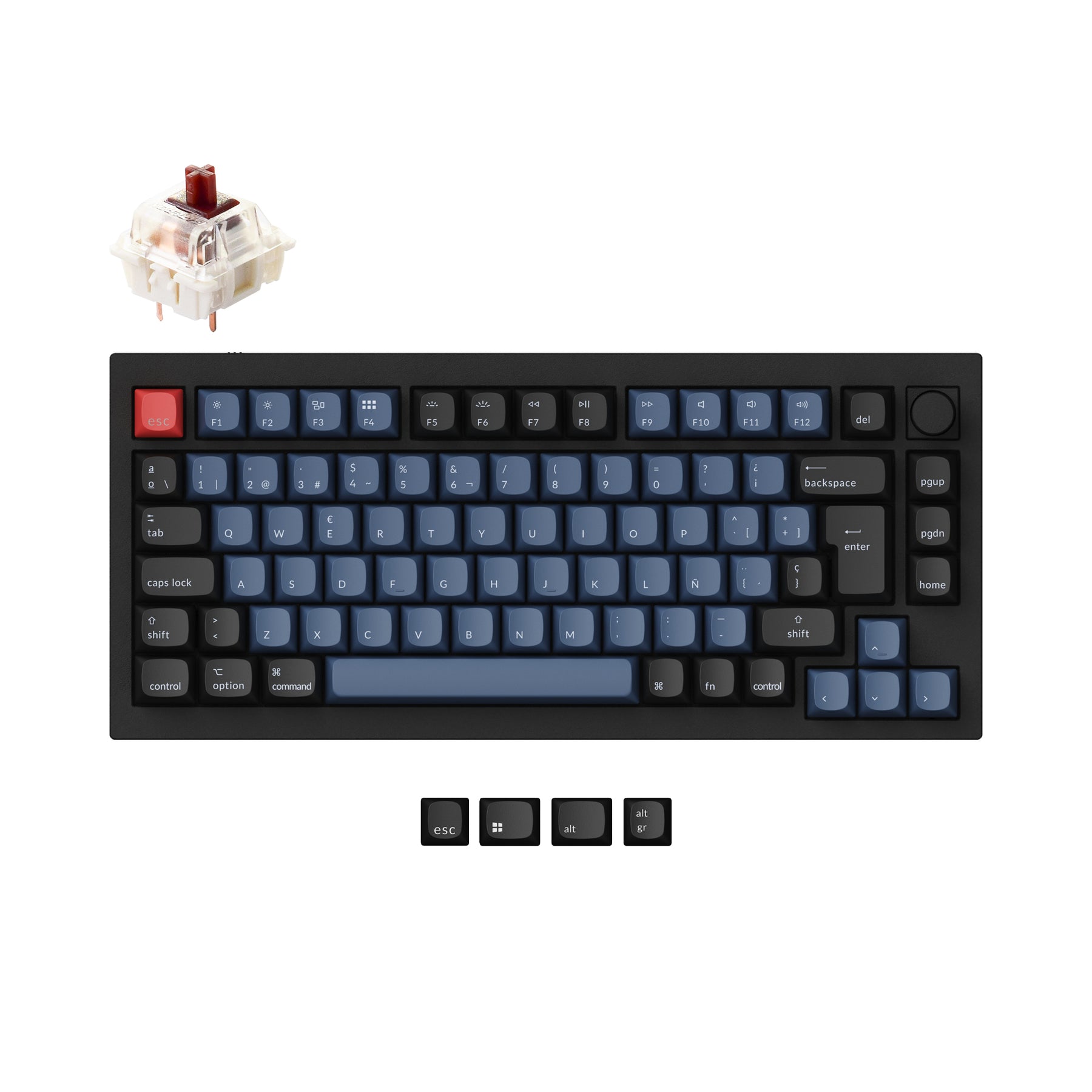

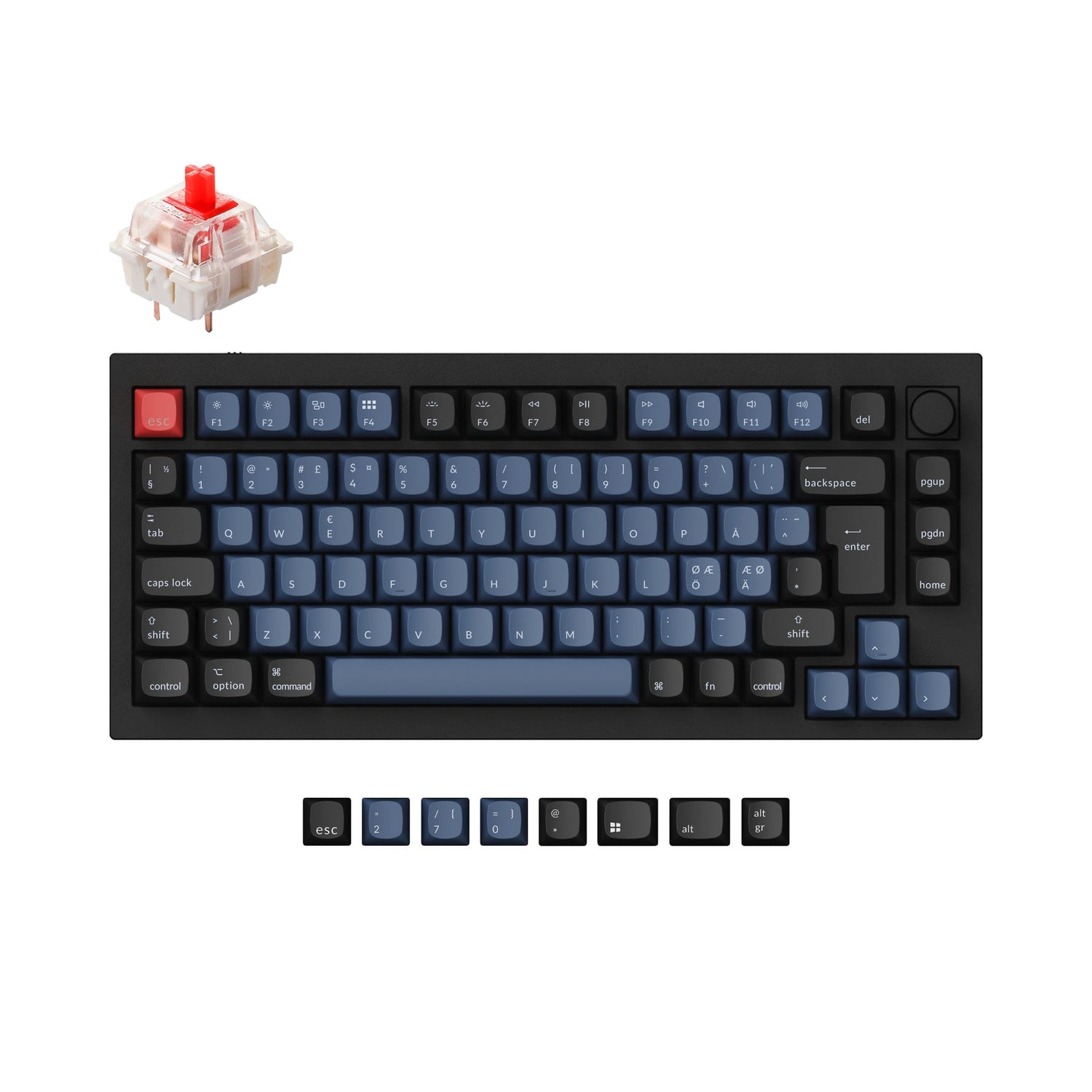

The Keychron Q1 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q1 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

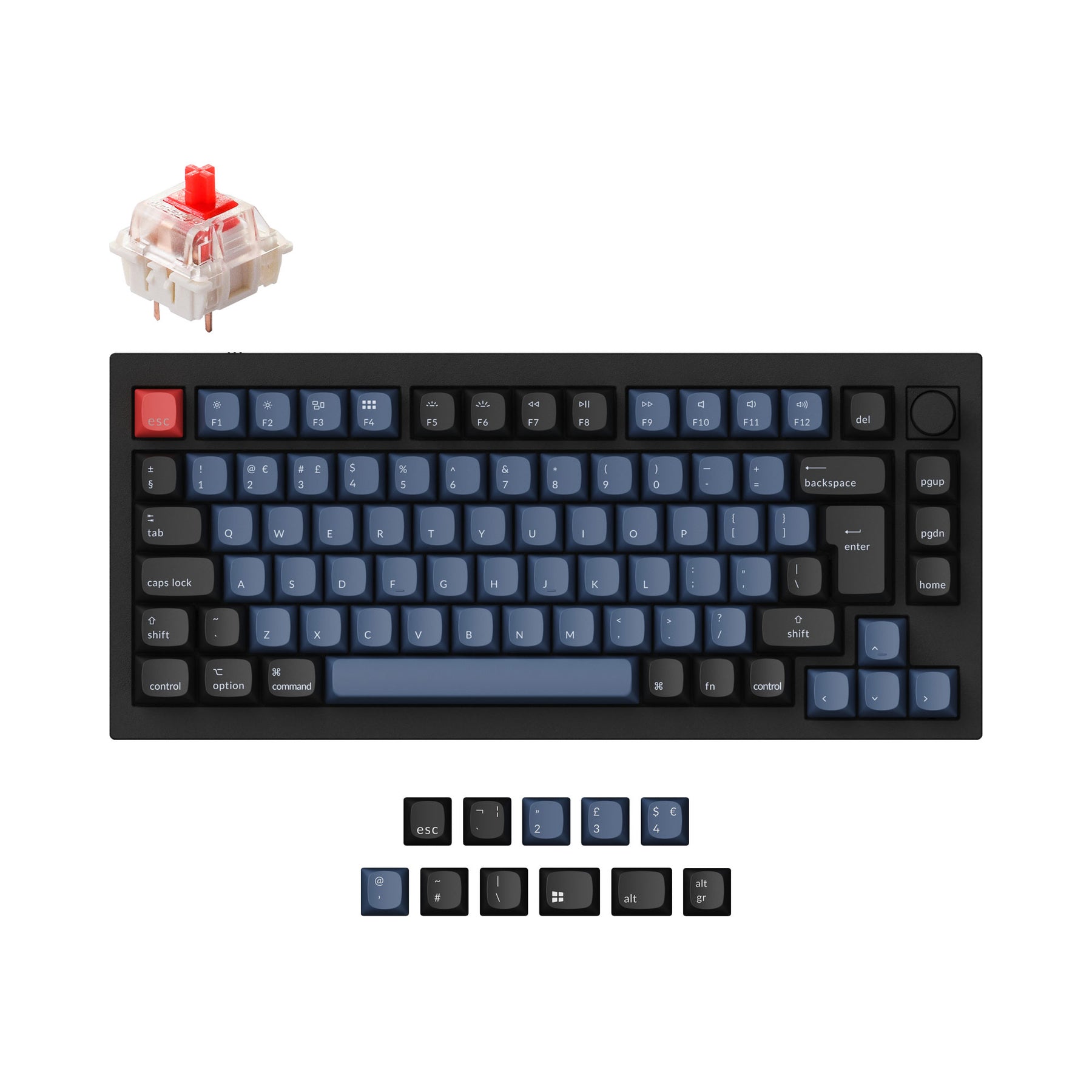

🇬🇧 UK-ISO Layout

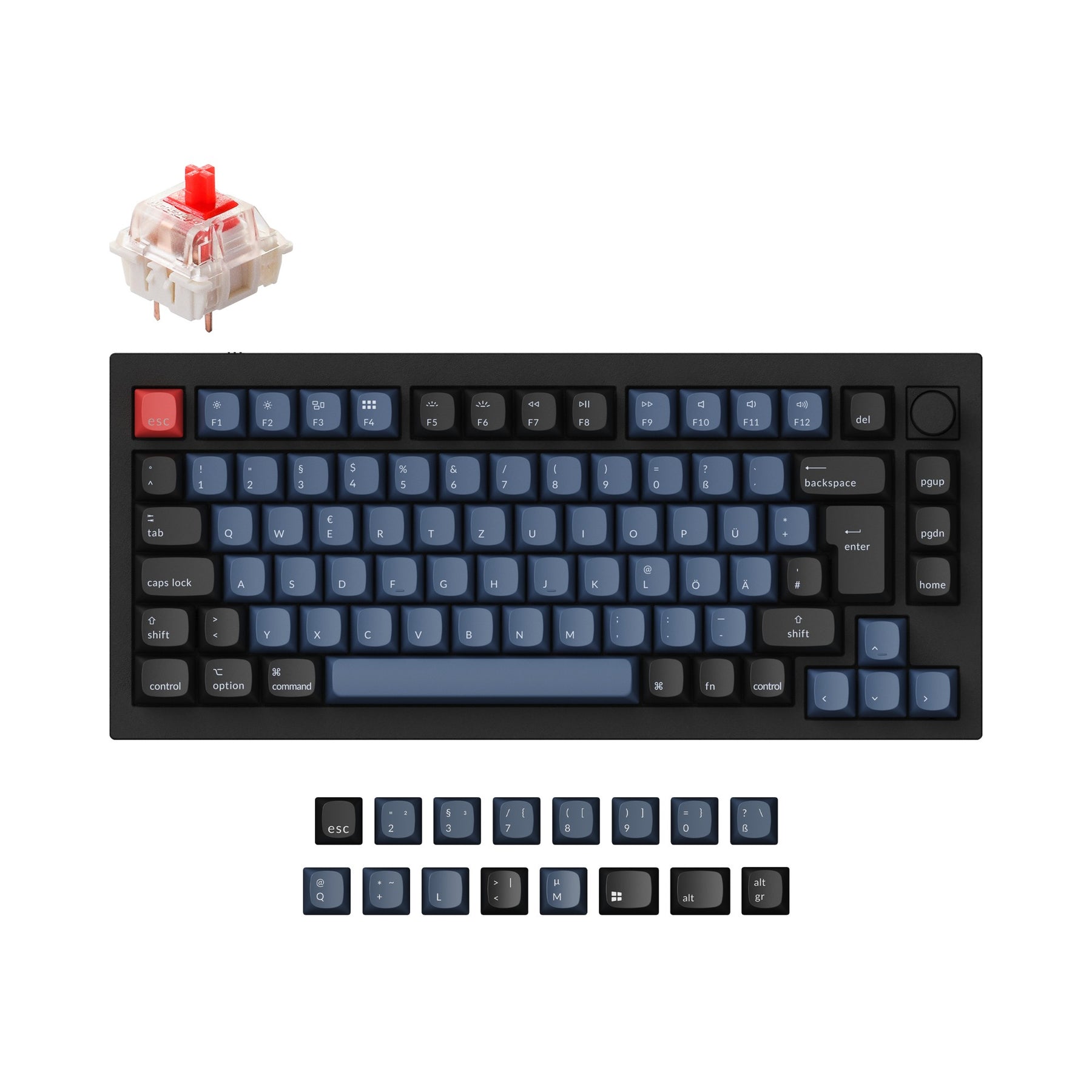

🇩🇪 DE-ISO Layout
🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪 Nordic-ISO Layout

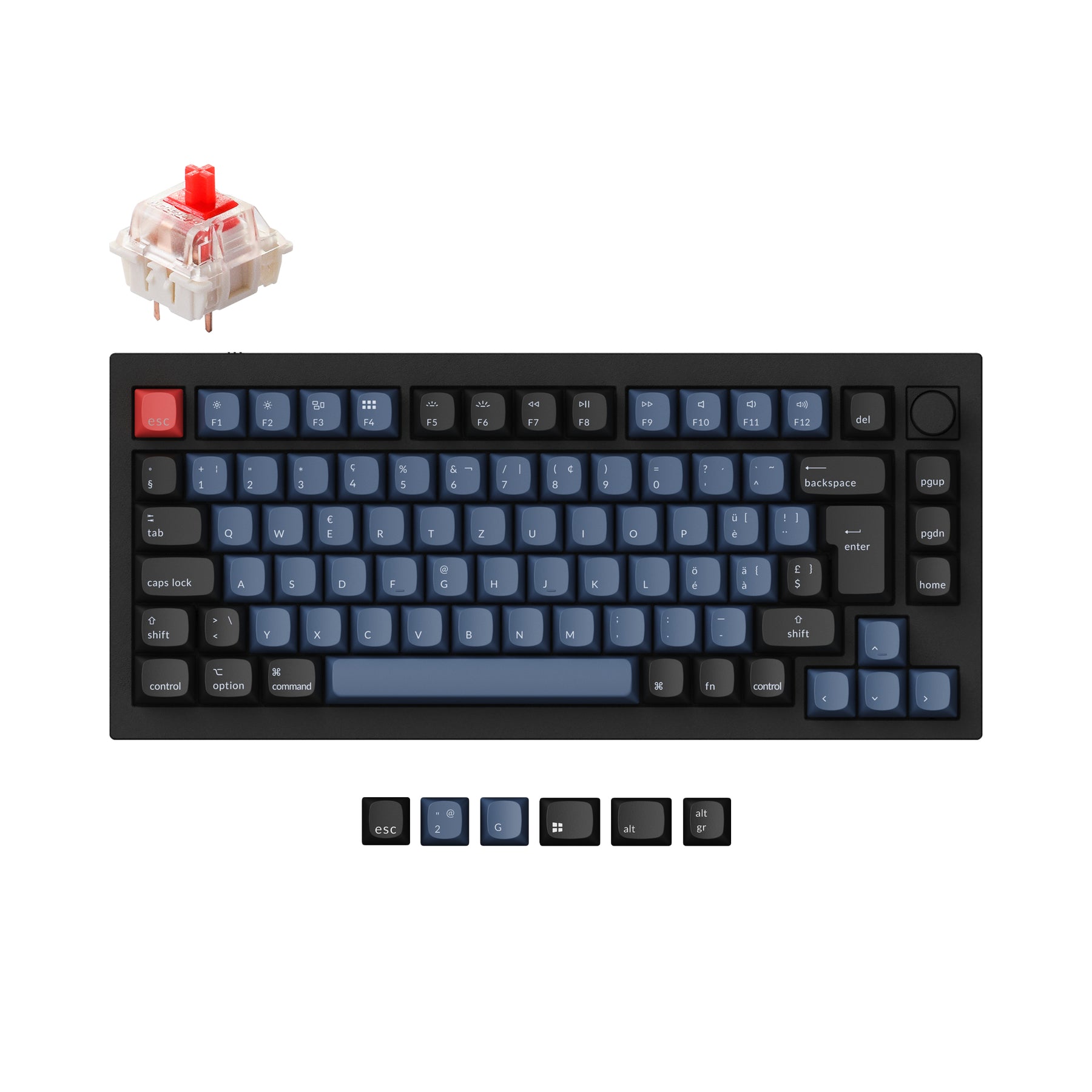

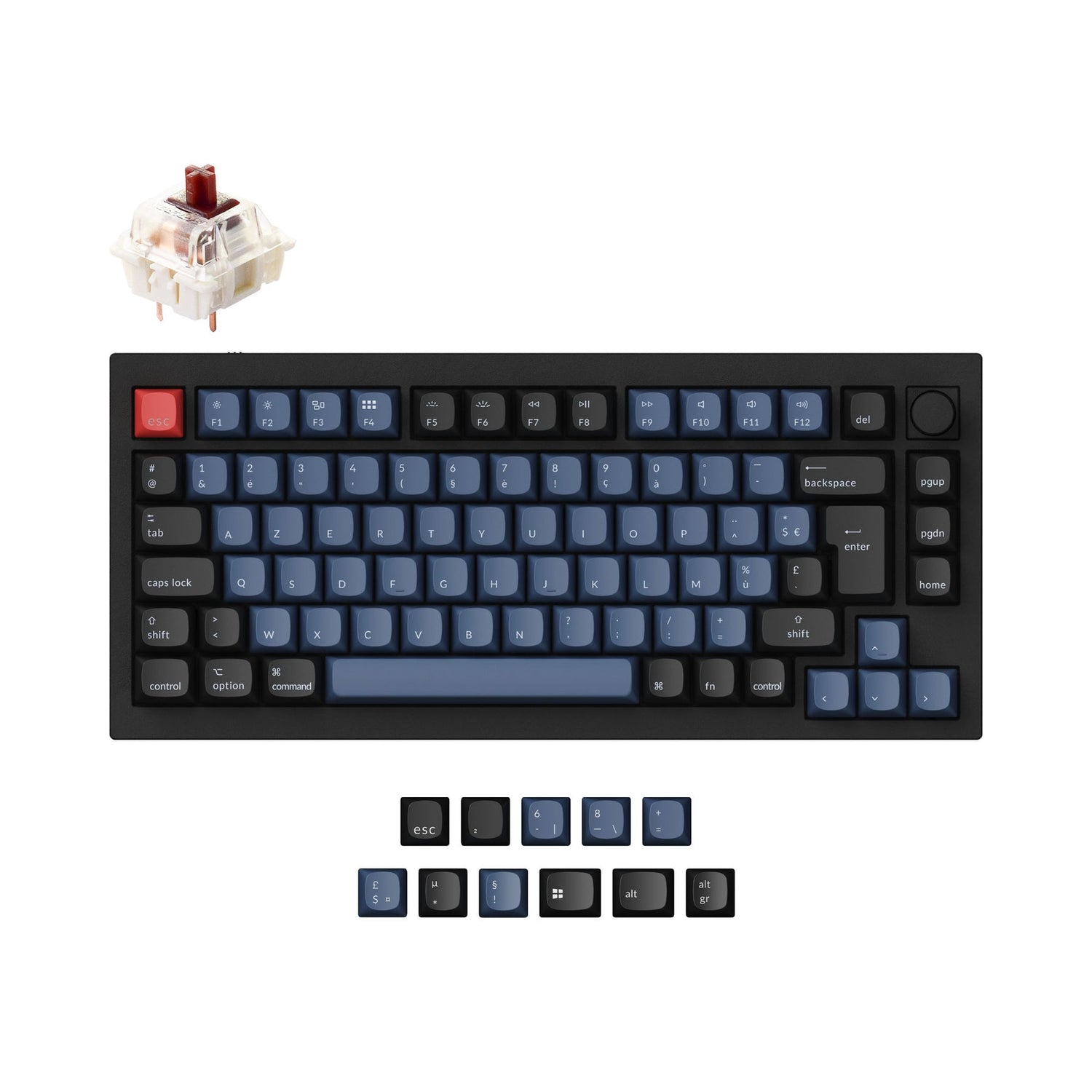

🇫🇷 FR-ISO Layout

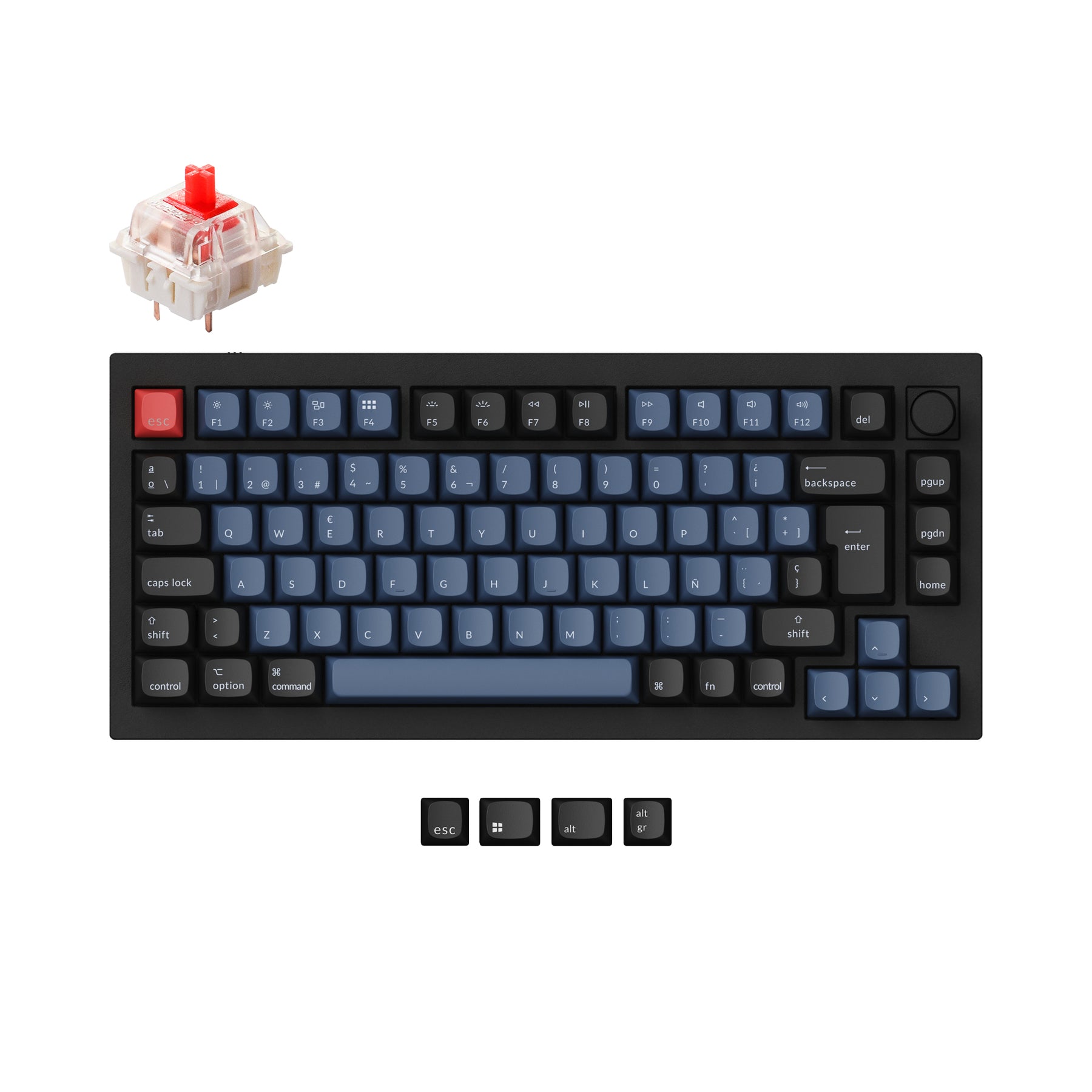

🇪🇸 ES-ISO Layout
🇨🇭 Swiss-ISO Layout
With keycaps for macOS installed on Q1 DE-ISO layout.
With keycaps for Windows installed on Q1 DE-ISO layout.
The sculpting of a piece of art.
This keyboard is not just a tool, but a piece of art on your desk. The Q1 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.

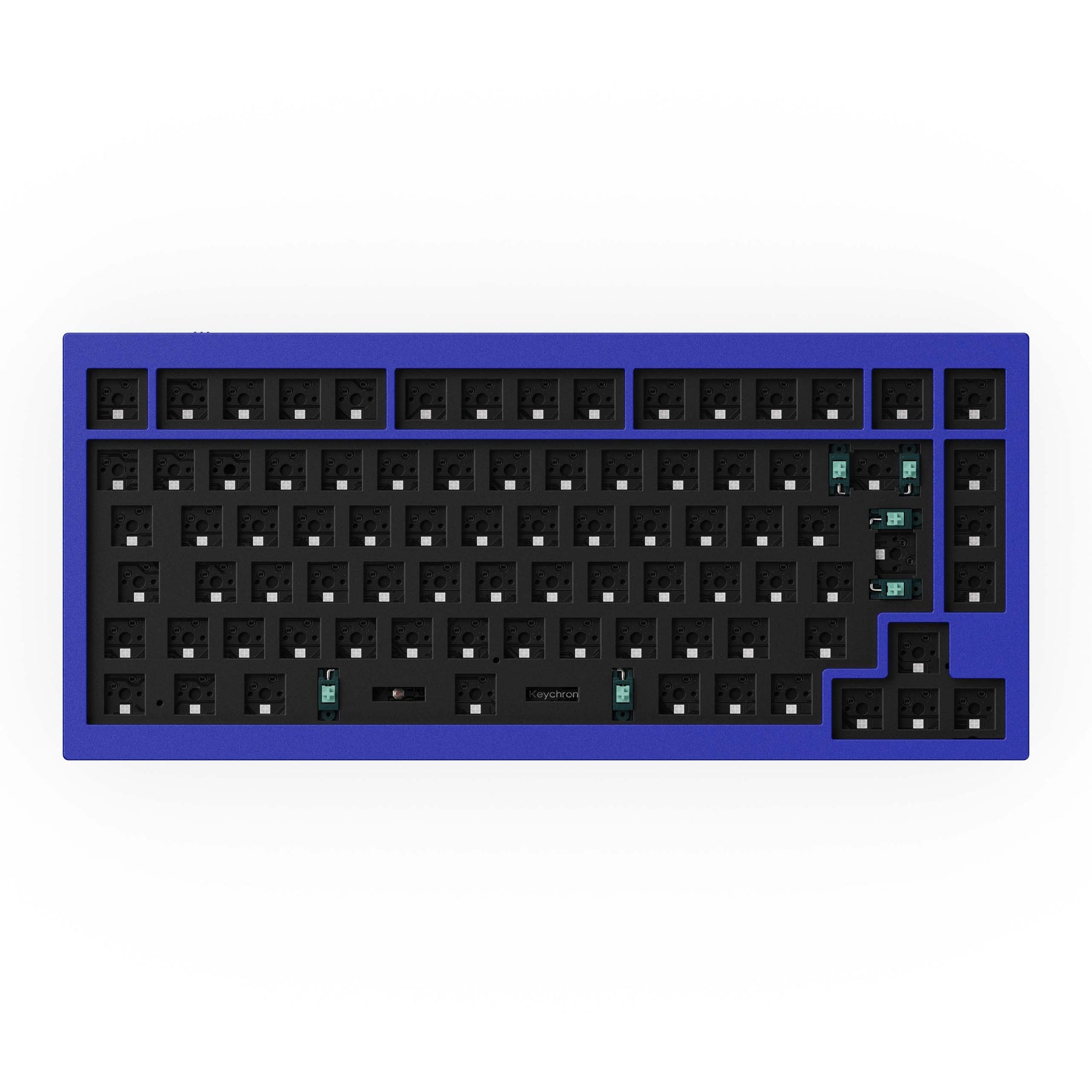

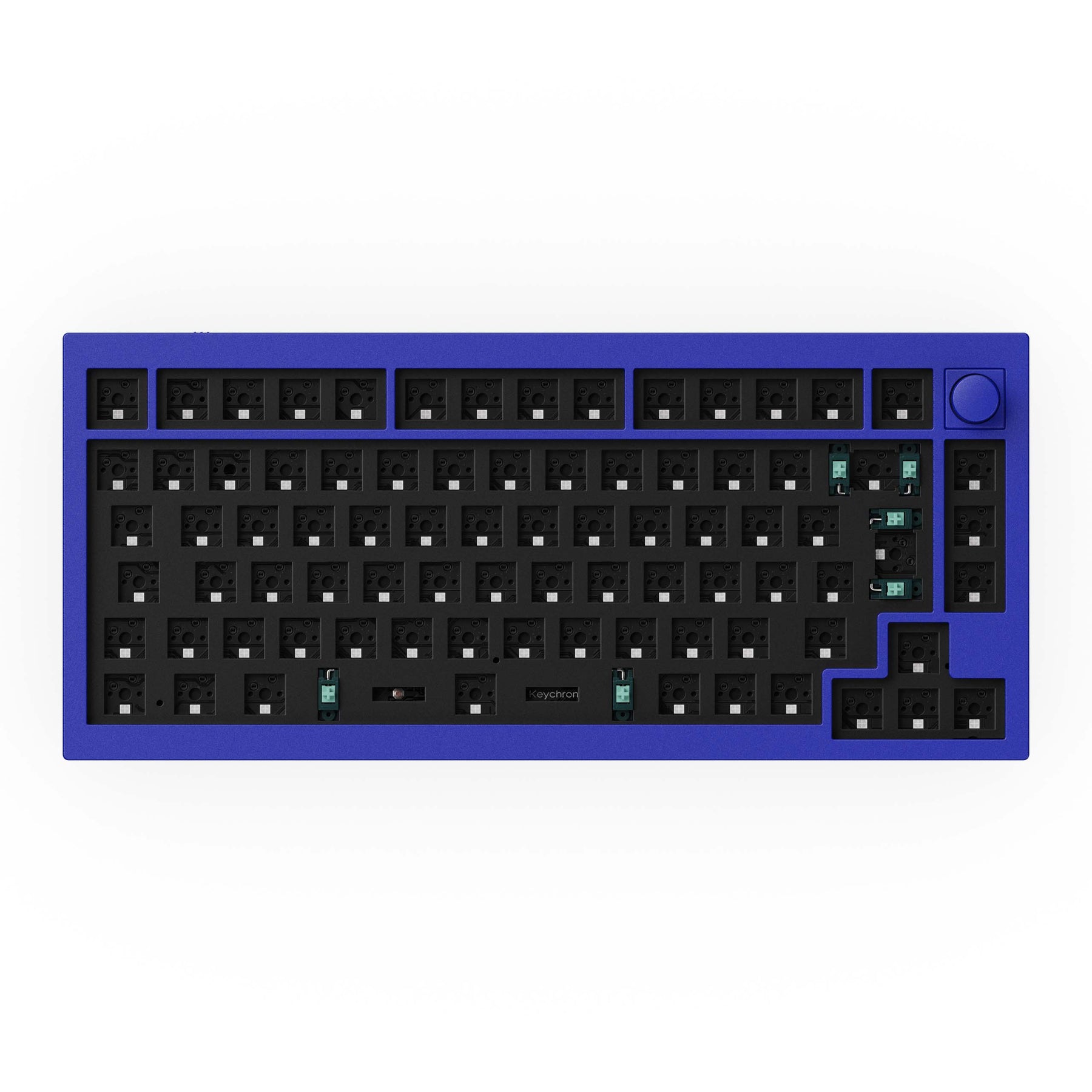

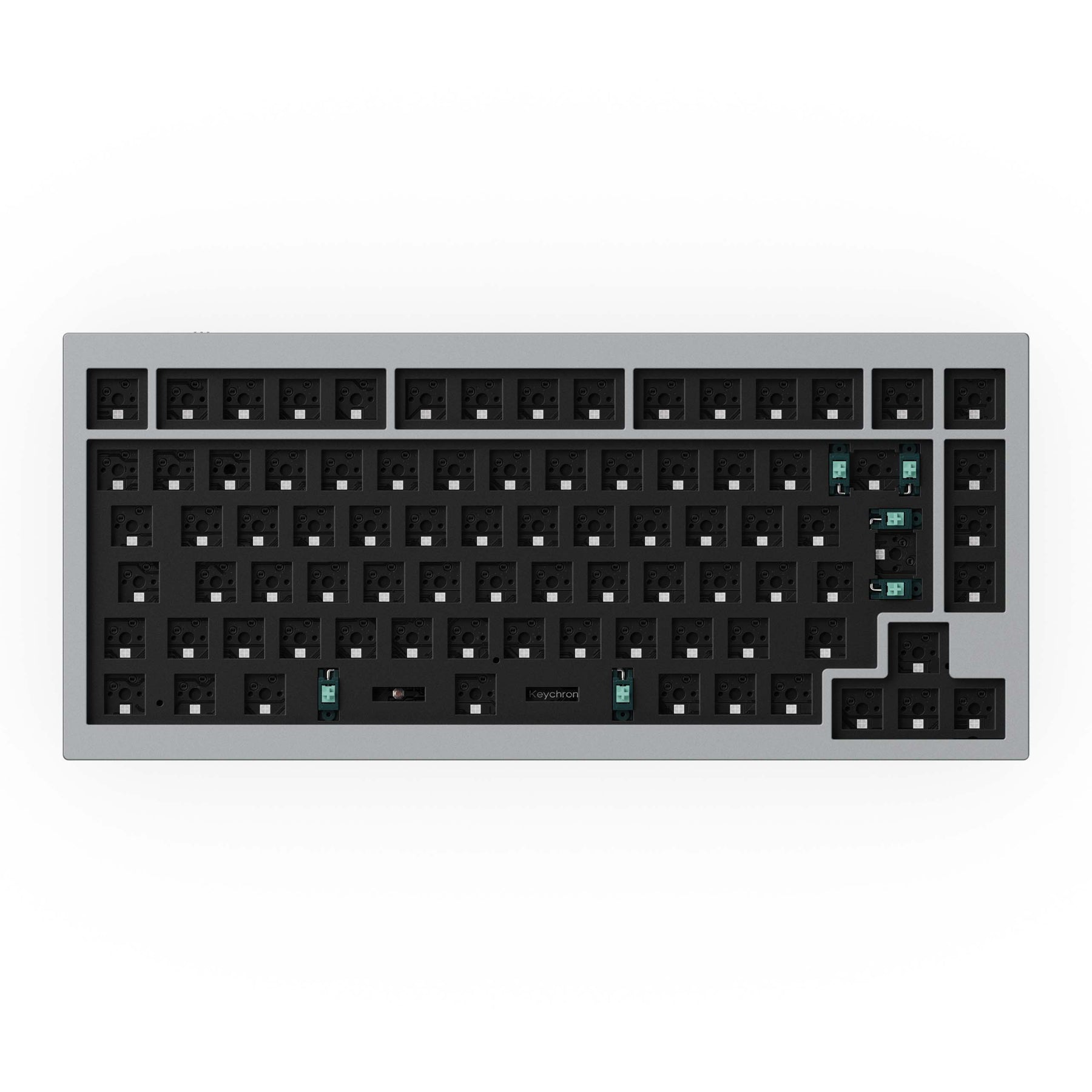

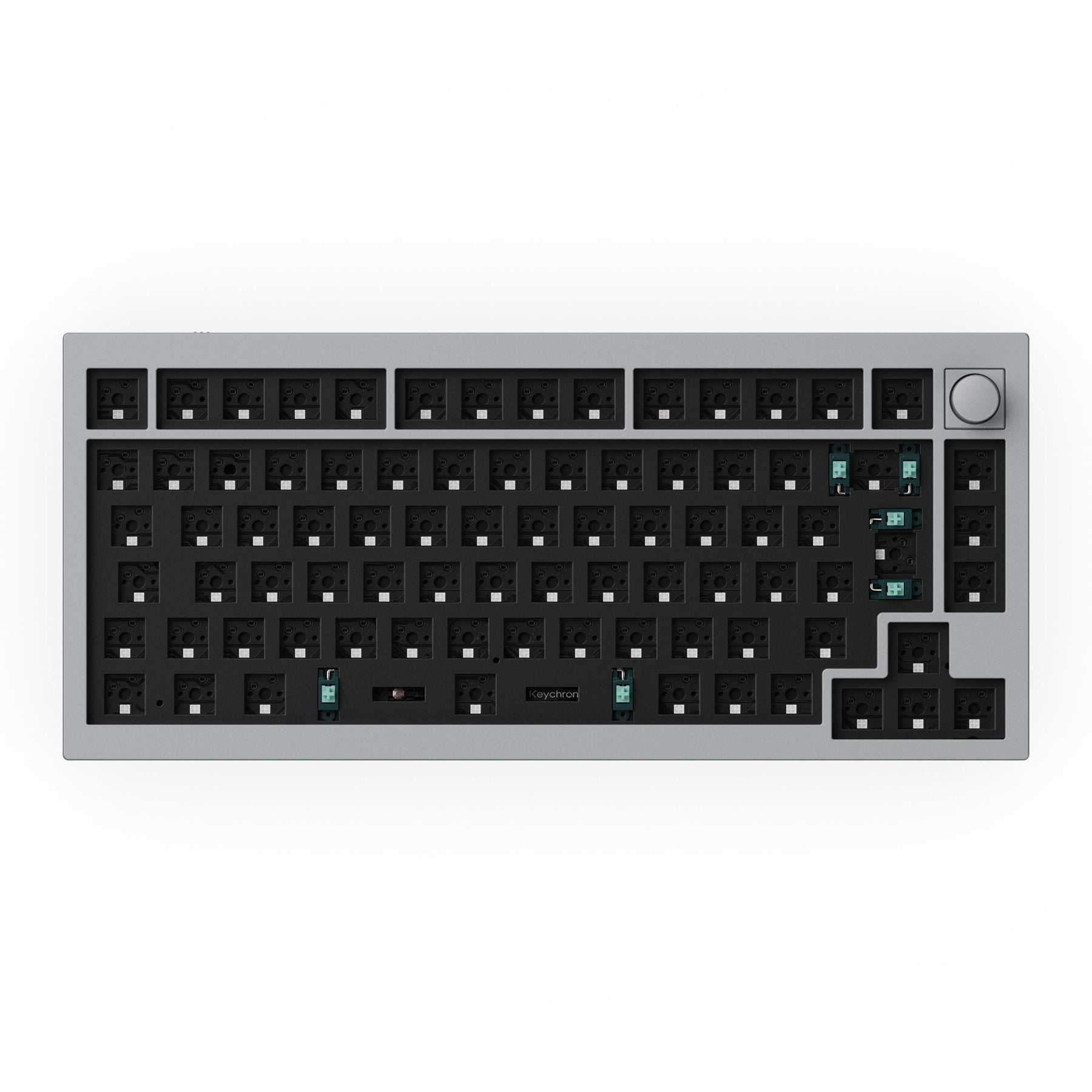

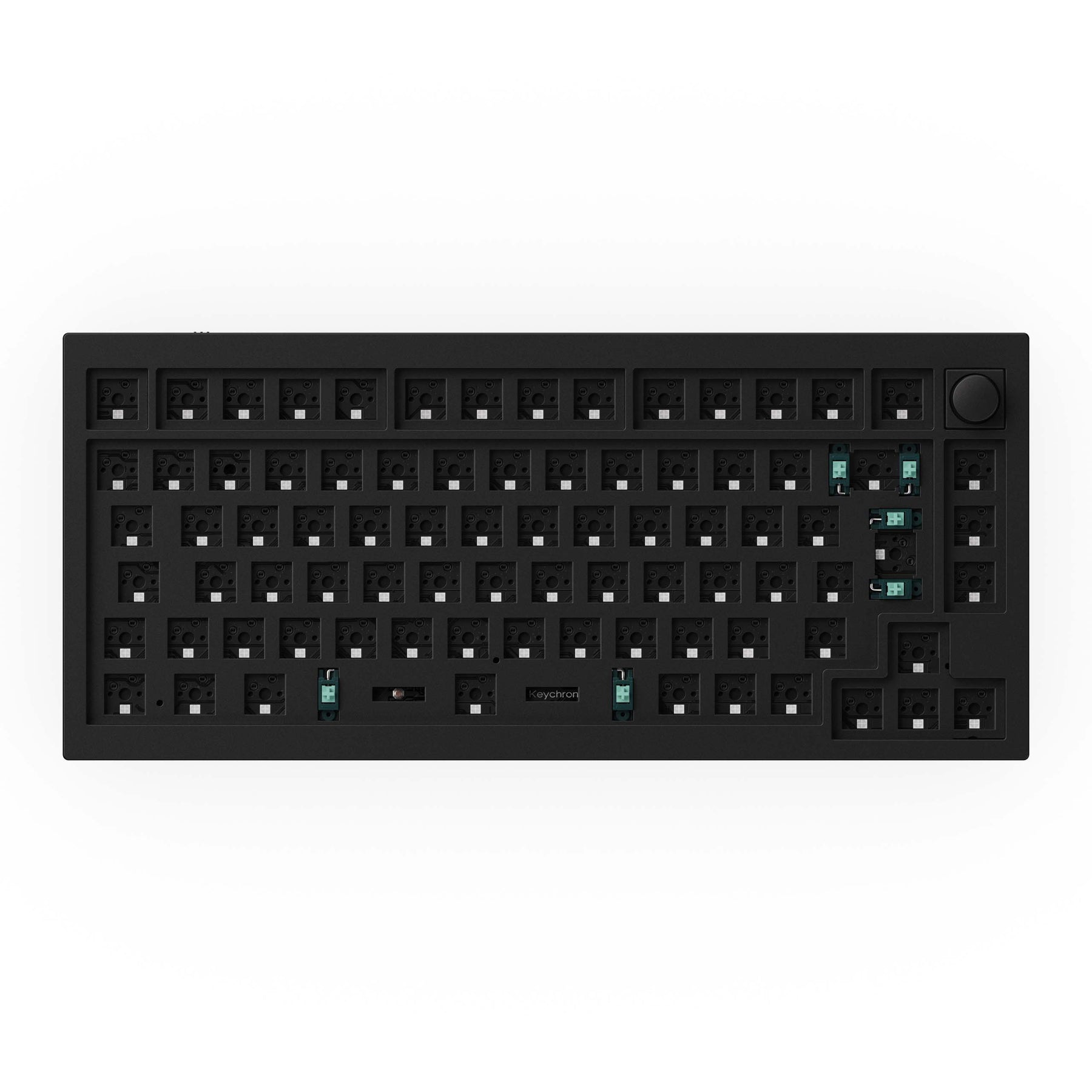

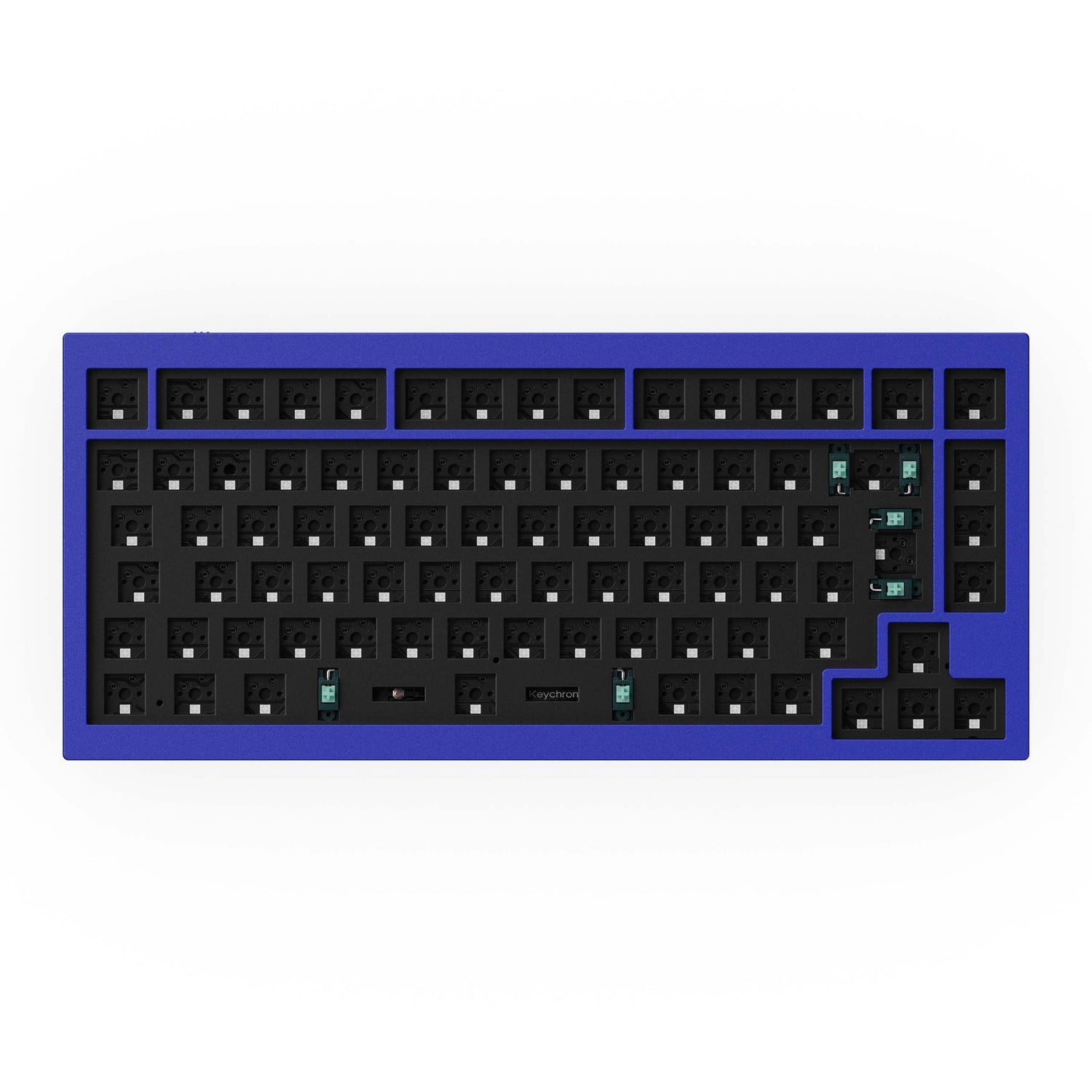

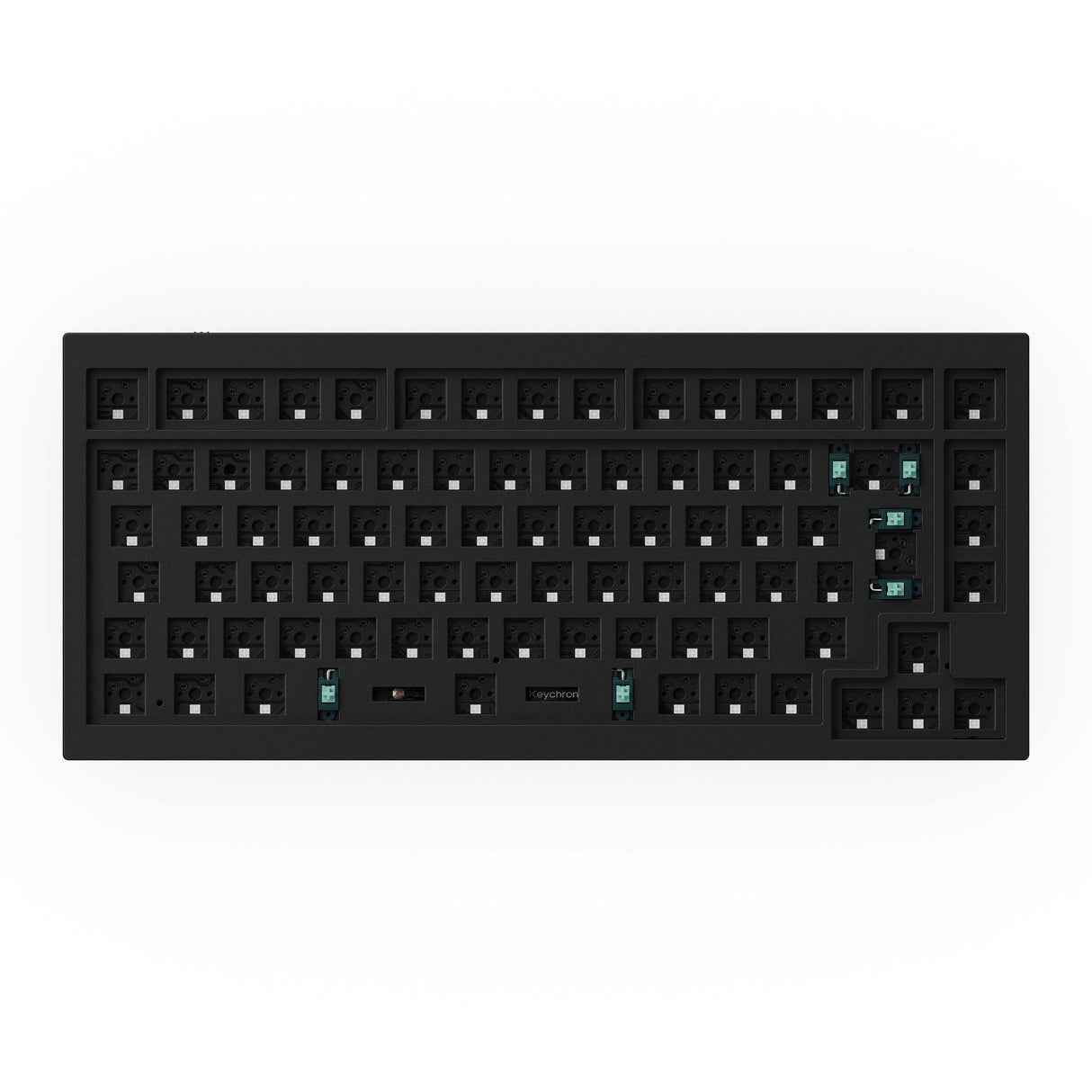

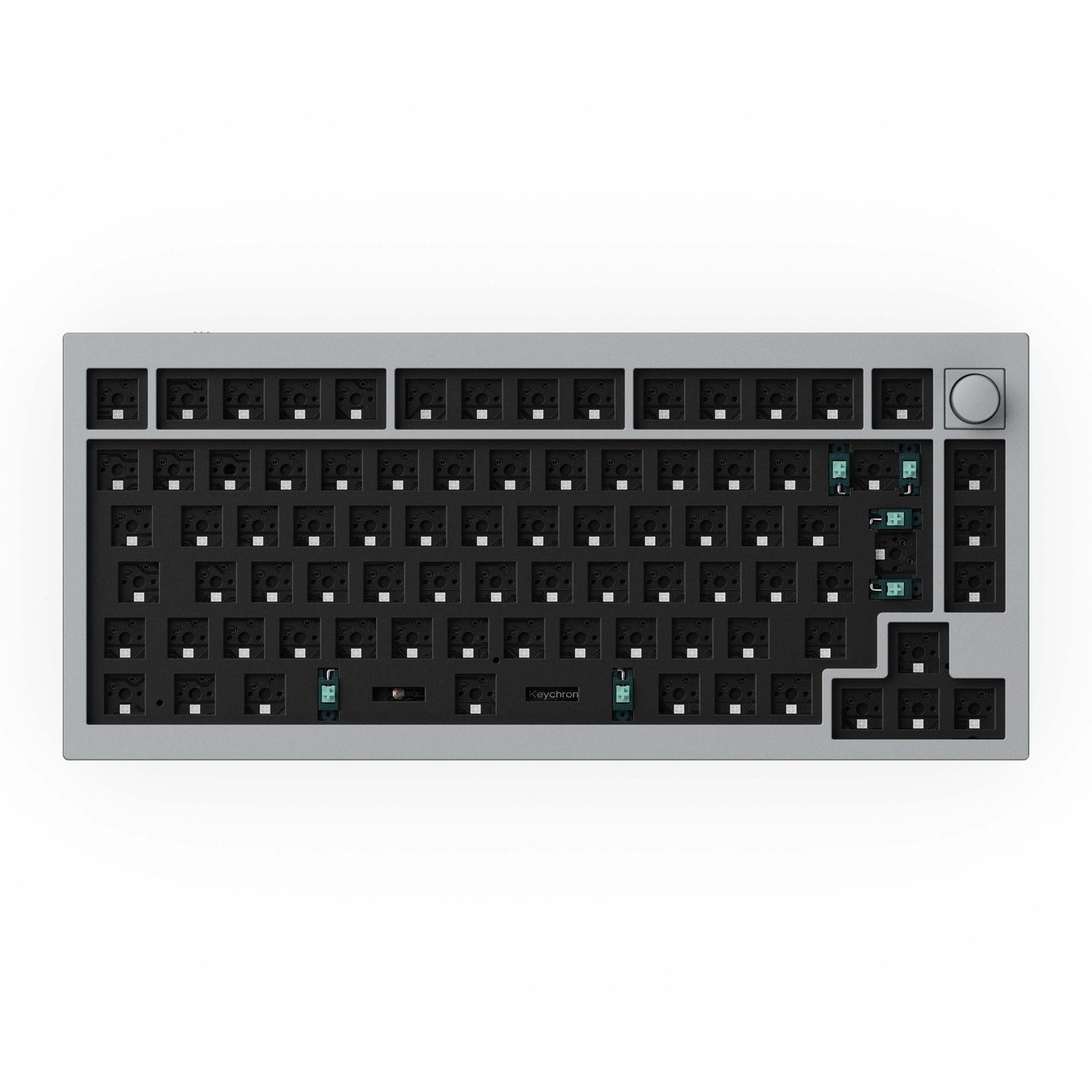

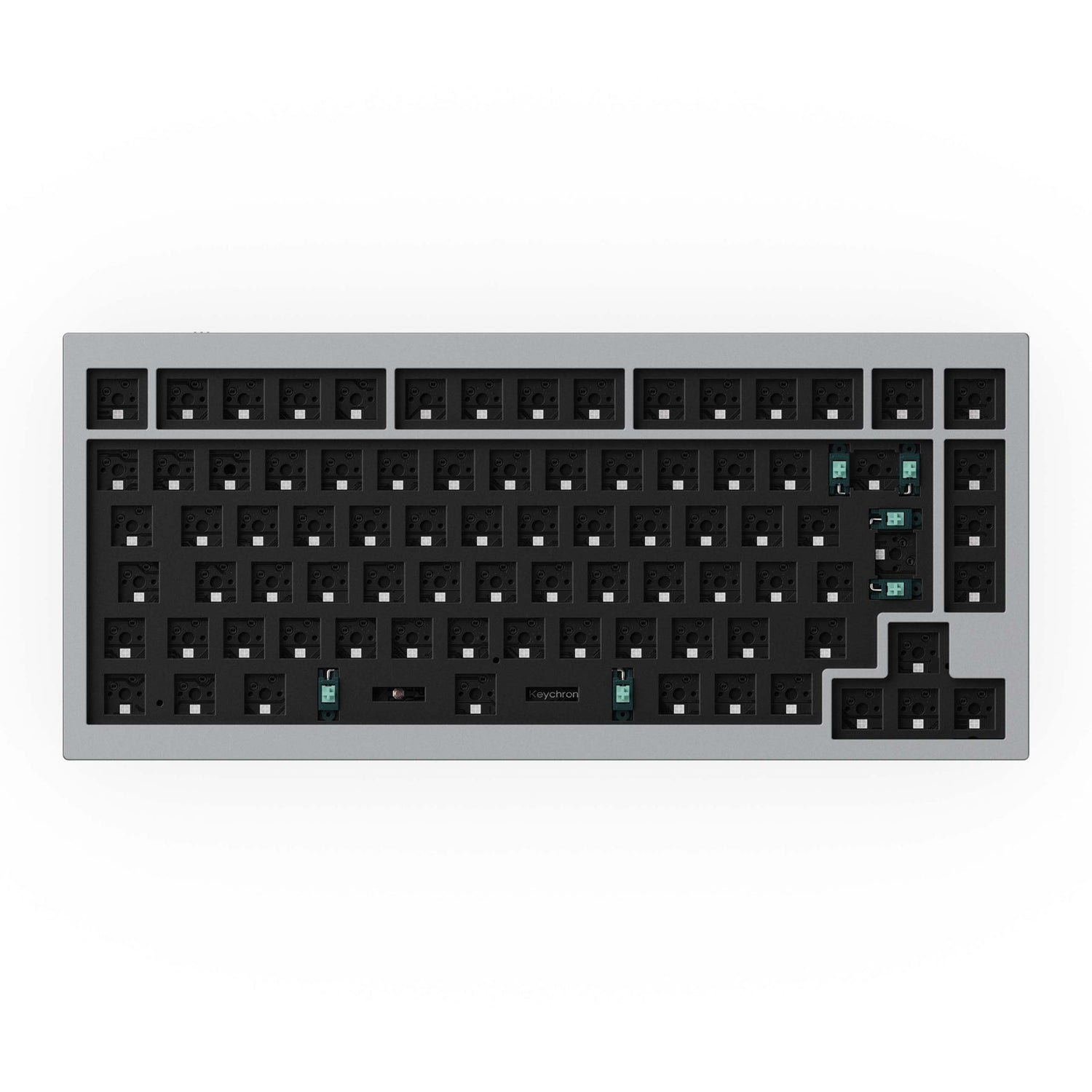

You can assemble every part.
To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.
PS: Changing the knob with a badge or key requires an additional PCB (sold separately).
Double-Gasket Design
Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better.
An Epic Core Inside The Keyboard
A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
*The special edition (Orange Yellow version) is equipped with MCU ATMEGA32U4.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.
You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining the compatibility for Windows devices, the Q1 is one of the only few in the market that comes with a Mac multimedia key layout for Mac enthusiasts. With VIA, you can configure your keymap for both Mac and Windows devices.
Program The Q1 with QMK & VIA.
With the Q1 ‘s open-source QMK/VIA, you can intuitively remap your favorite keys and create macros with any key (including the knob) on any operating system (macOS, Windows, or Linux) for a fluid workflow.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
Note: The Q1 V2's top case has sharper corners to make it much more compatible with third-party keycaps, such as MT3, SA, XDA, etc.
Pre-lubed Gateron G Pro Switch
Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with our revamped stabilizers and factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed.
Note: The Phantom switches have phantom light effects that allows the RGB backlight to have the switches' own case color.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q3 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 137 mm |
|---|---|
| Length | 365.1 mm |
| Front Height | 19.7 mm (without keycaps) |
| Back Height | 32.6 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 2000 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
| Keycaps | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| Switches | Gateron G Pro (fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Section
Drop element here!
Keychron Q1 User Guide
Learn more about the Keychron Q1 such as the Q1 shortcuts, assembling the Q1, factory reset, and more in the FAQ section.
