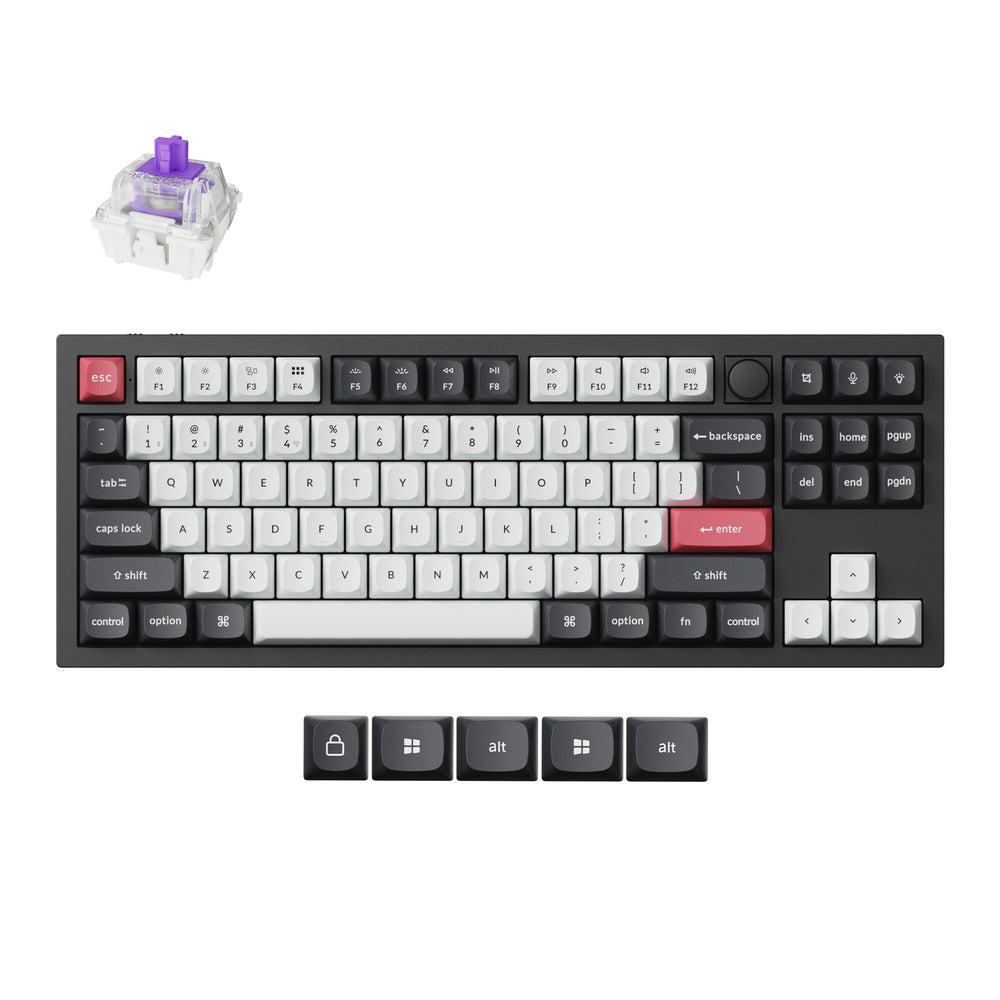

Keychron Q3 HE QMK Wireless Custom Keyboard (US ANSI Layout)
Keychron Q3 HE QMK Wireless Custom Keyboard (US ANSI Layout) - Fully Assembled Knob / Carbon Black / Gateron Double-Rail Magnetic Nebula Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Fully Assembled version includes:
- The keyboard PCB, the case, and the aluminum plate.
- Keycaps (included Mac & Windows keycaps).
- Adjustable-actuation-point Gateron 2.0 magnetic switches.
The Q3 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.
No discount codes can be used for the Q3 HE.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Q3 HE
Introducing the Q3 HE, a wireless QMK custom keyboard with an 80% TKL layout equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements to the gaming experience tailored to your individual preferences.
In addition to the Hall Effect magnetic switches, the Q3 HE introduces a 2.4G connection mode with an impressive 1000 Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.
Choose the keycaps, switches, and more accessories for your Q3 HE.
Gateron Double-Rail Magnetic Hall Effect Switches
With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.
Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.
Add Gateron Double-Rail Magnetic Switch to cart
Adjustable Actuation Point
Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.
Dynamic Rapid Trigger
Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.
Multiple Actions, One Keystroke
Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.
Reassign Keys By The Keychron Launcher Web App
With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the Q3 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q3 HE via Bluetooth 5.2 to three devices.
A Piece Of Metal Art
The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.
Customize Every Part
To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.
Double-Gasket Design
Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.
An Epic Core Inside The Keyboard
Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q3 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
OSA Profile Double-shot PBT Keycaps
It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Hot-swappable
Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.
*The Q3 HE is compatible with the magnetic switches sold on the Keychron website only.
South-facing RGB LED Lights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.
What's in the box?
Frequently Bought Together (Add-on)
Please select the matching variant for your product.
Specs
| Width | 137 mm |
|---|---|
| Length | 365 mm |
| Front Height | 22.6 mm (without keycaps) |
| Back Height | 35.8 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 5.2° |
| Weight | 1775 g ± 10 g (Fully Assembled version) |
| Body Material | Aluminum |
| Plate Material | Aluminum |
| Polling Rate | 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Rapid Trigger | Yes |
| Adjustable Actuation Points | 0.2 - 3.8 mm |
| Dynamic Keystrokes | 4-in-1 action keys |
| Sensitivity | 0.1 mm |
| Keycaps (Fully Assembled Version) | OSA Double-shot keycaps, not shine-through |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402RC (256KB Flash) |
| Backlight | 22 types of RGB backlight options plus South-facing RGB LED |
| Switch | Gateron double-rail magnetic switch |
| Hot-swappable Support | Yes, compatible with Gateron double-rail magnetic switch only. |
| Stabilizer | Screw-in PCB stabilizer |
| Cable | Type-C cable (1.8 m) + Type-A to Type-C adapter |
| Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version | 5.2 |
| Bluetooth Device Name | Keychron Q3 HE |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Operating Environment | -10 to 50℃ |
| Wireless Working Time (Backlit off) | Up to 100 hours |
Learn more about the Keychron Q3 HE such as the shortcuts, HE mode, factory reset, and more.
