Keychron Q0 QMK Custom Number Pad

SKU: Q0-C1
$125.00

Type
Color
Switches

Notify Me When Available

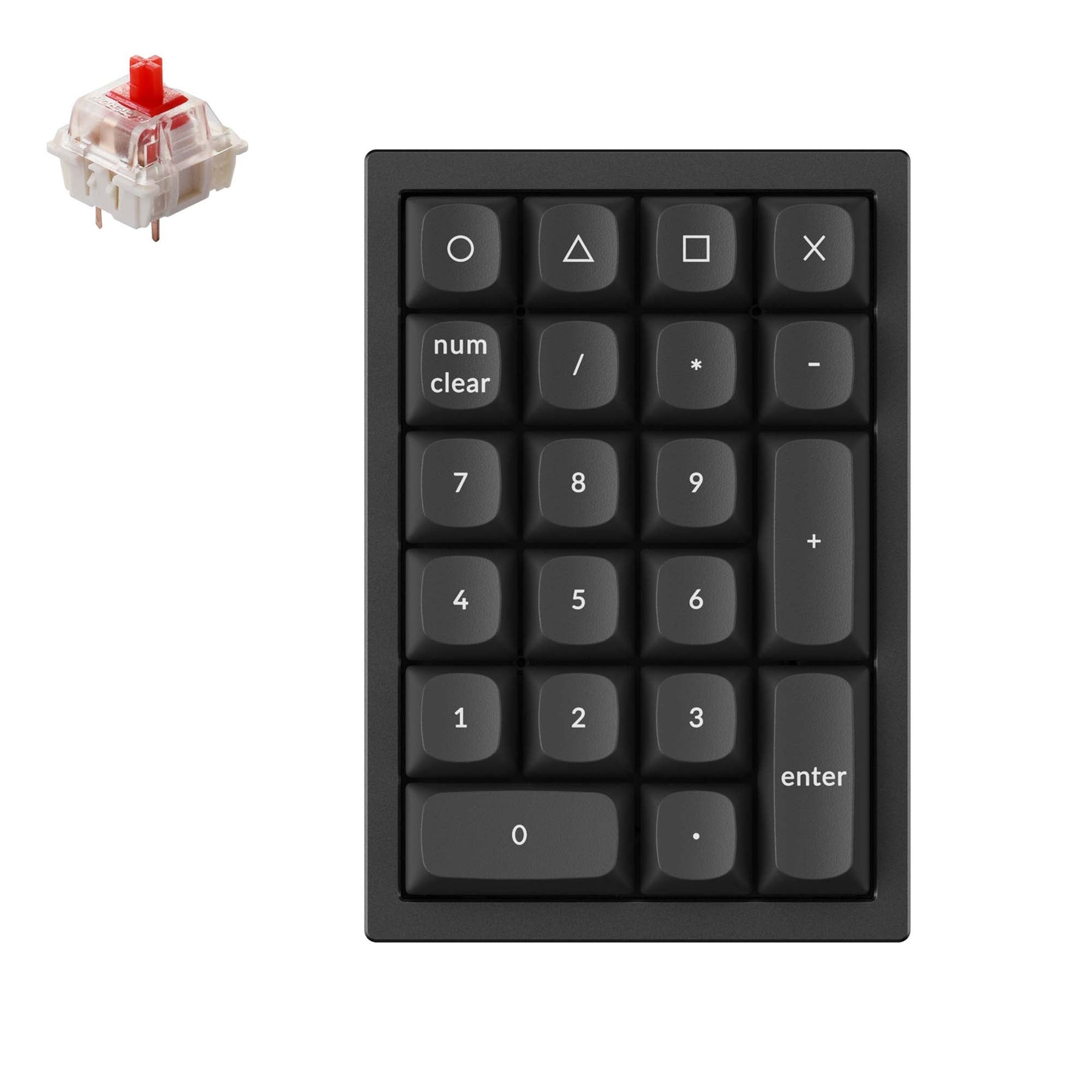

The fully assembled version includes:
  • The number pad PCB, the case, and the steel plate
  • Double-shot OSA PBT keycaps
  • Gateron G Pro switches

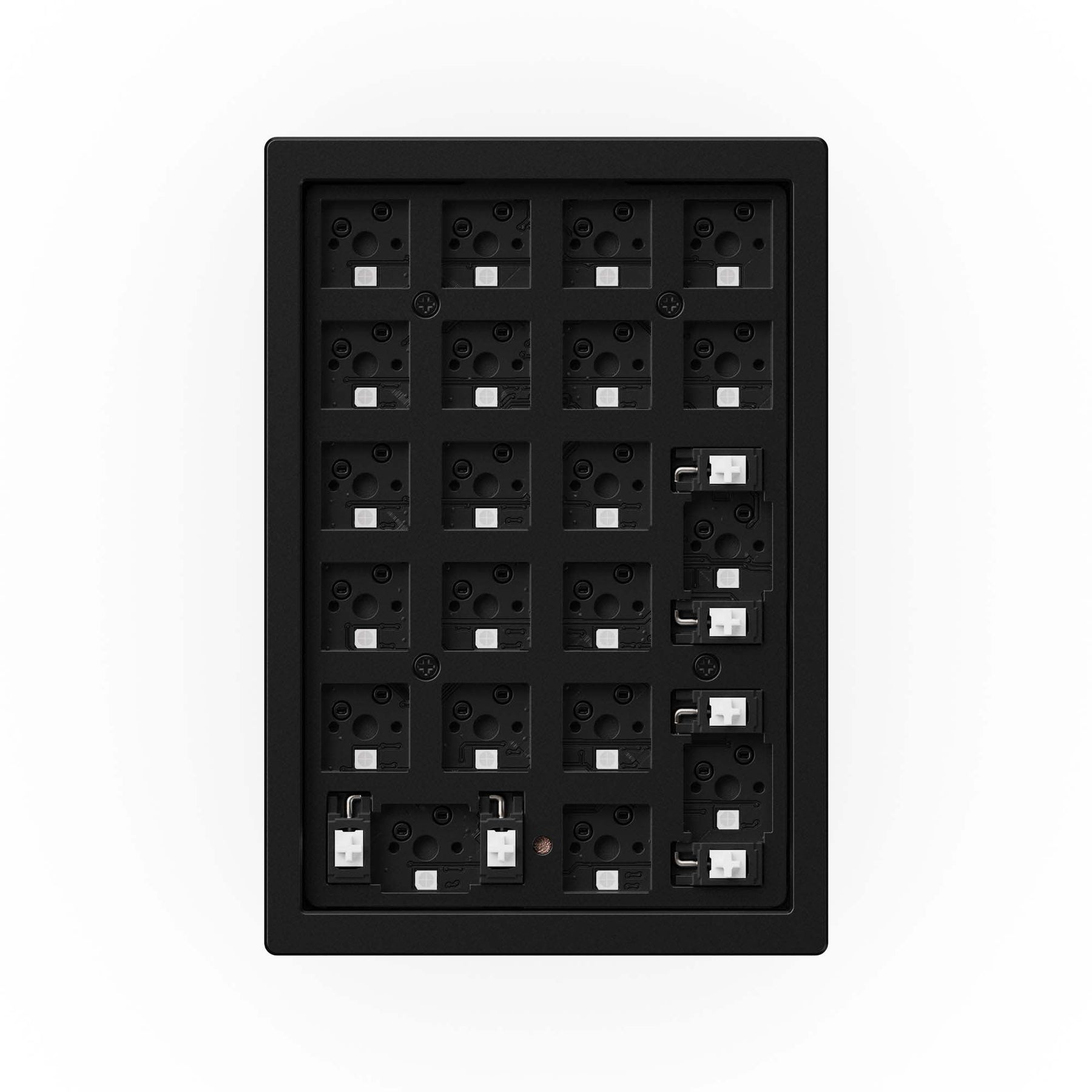

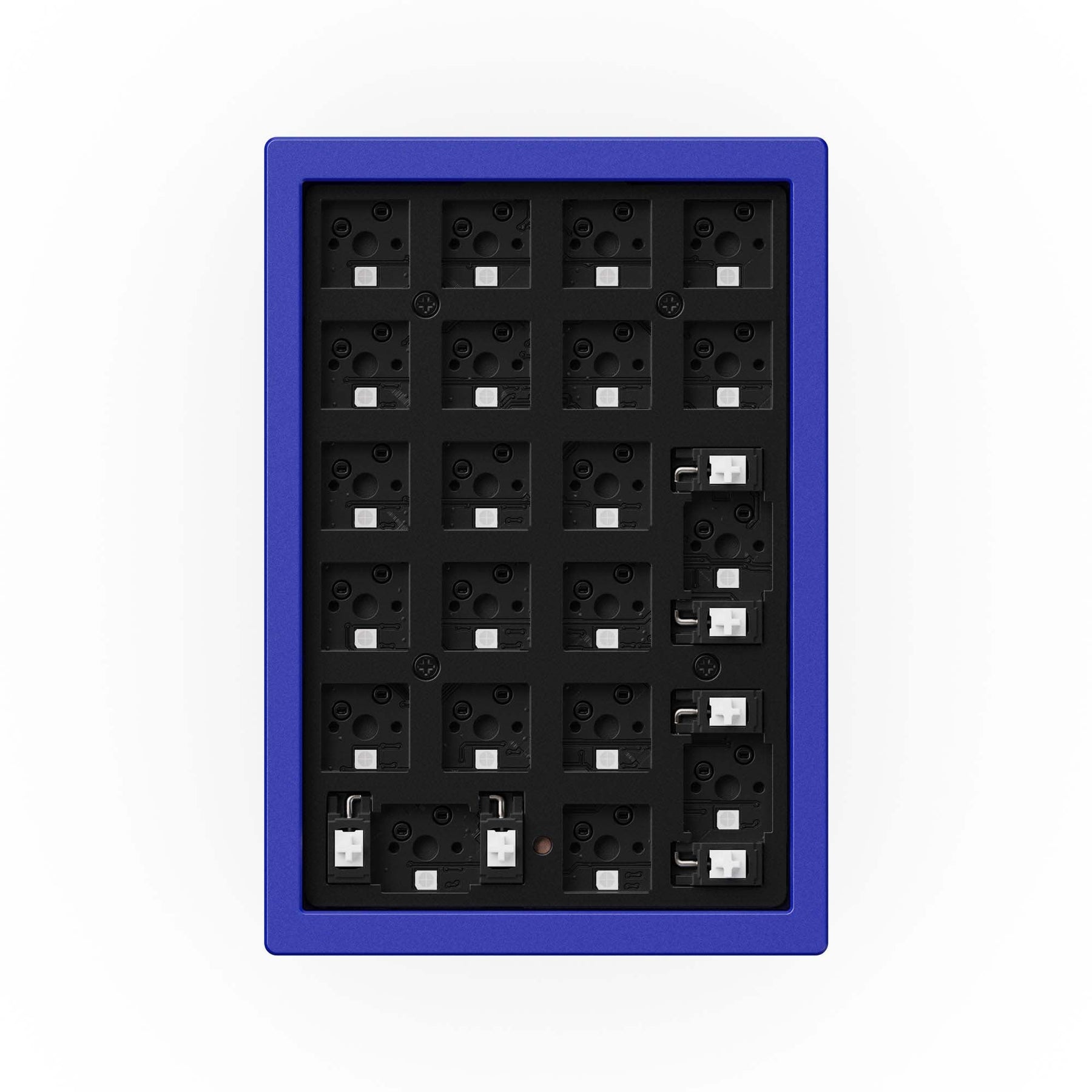

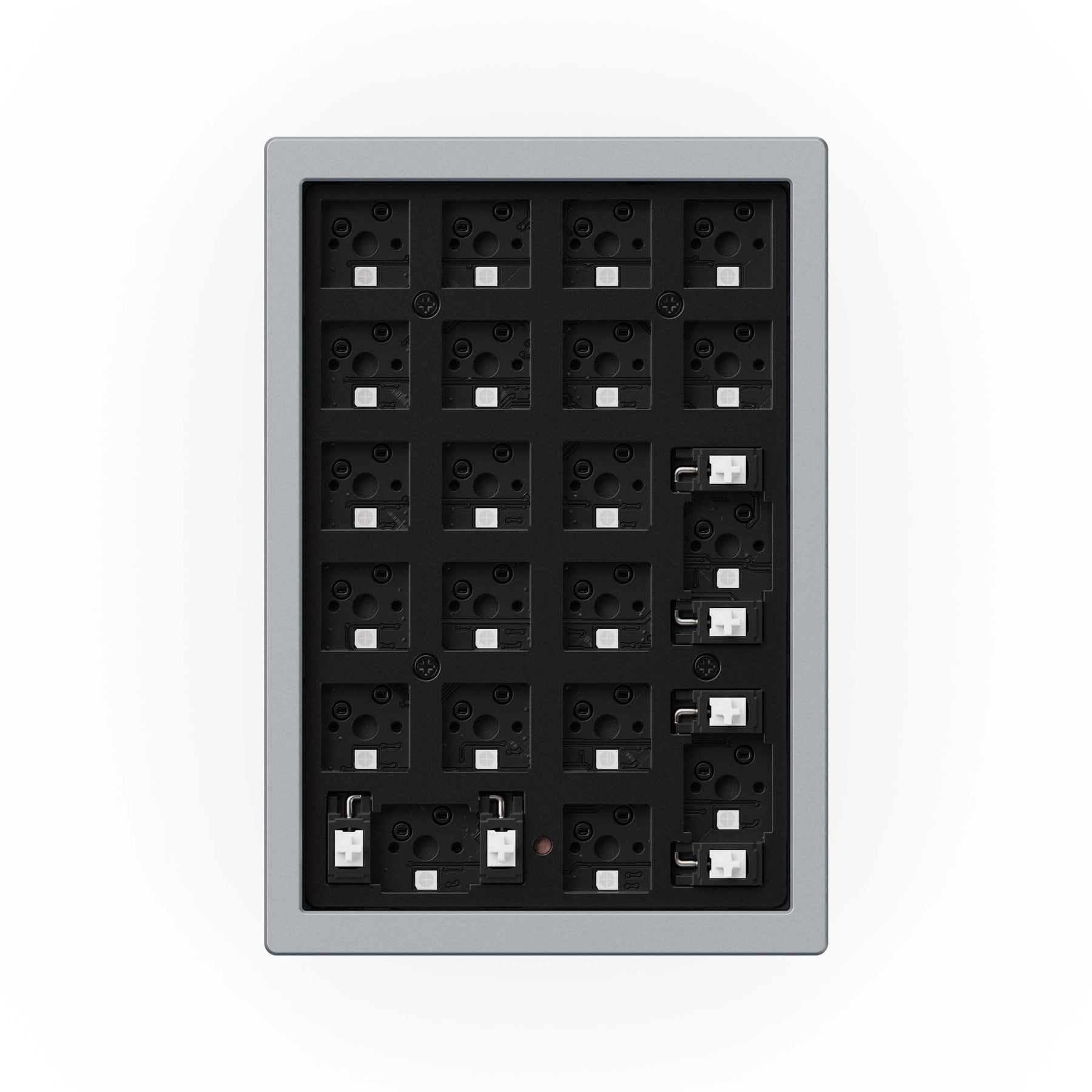

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q0.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Please note that the frame color may be slightly different from other Q series keyboards as the Q0 was manufactured separately.

Keychron Q0 Custom Mechanical number pad

Keychron Q0

The Q0 is a mini custom number pad, it's designed as a number pad or it can act as an extra key set of macros. With its all-metal CNC machined body, screw-in stabs, hot-swappable function, RGB LEDs, pre-lubed switches, and QMK/VIA support, the Q0 is the best customizable number pad for you.

Keychron Q0 Custom Mechanical number pad
Keychron Q0 Custom Mechanical number pad
Features of Keychron Q0 Custom Mechanical number pad

Choose the keycaps, switches and more accessories for your Q0

Premium Metal Gadget

The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 a beautifully crafted gadget for your desk.

Keychron Q0 Custom Mechanical number pad

Fully Customizable Number Pad

To build a fully customizable number pad, we designed every component easily assembled so you can customize and adjust each element as you wish.

Keychron Q0 Custom Mechanical number pad
Keychron Q0 Custom Mechanical number pad
Program with QMK & Launcher
Program with QMK & Launcher

Program with QMK & Launcher

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program the keyboard with Launcher
Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT of Keychron Q0 Custom Mechanical number pad
All New Screw-In PCB Stabilizers of Keychron Q0 Custom Mechanical number pad

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys' (0, +, enter) typing experience is now more stable and smoother. The Keychron Q0 also supports third-party stabilizers, including Cherry or Durock.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the number pad backlight from the typist's angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the number pad.

Note: The Q0's top case has sharper corners to make it much more compatible with third-party keycaps.

Barebone Keychron Q0 Custom Mechanical number pad

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q0 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Gateron G Pro Switch Features

Typing Sound Test

What's in the box?

Keychron Q0 Custom Mechanical number pad
Keychron Q0 Custom Mechanical number pad

Frequently Bought Together

Please select the matching variant for your product.

Yellow Duck Resin Artisan Keycap
Yellow Duck Resin Artisan Keycap
Yellow Duck Resin Artisan Keycap
Yellow Duck Resin Artisan Keycap
Yellow Duck Resin Artisan Keycap
Yellow Duck Resin Artisan Keycap

Yellow Duck Resin Artisan Keycap

Whelk Resin Artisan Keycap
Whelk Resin Artisan Keycap
Whelk Resin Artisan Keycap
Whelk Resin Artisan Keycap

Whelk Resin Artisan Keycap

V8 PC Plate
V8 PC Plate
V8 PC Plate
V8 PC Plate

V8 PC Plate

V8 Brass Plate
V8 Brass Plate
V8 Brass Plate
V8 Brass Plate

V8 Brass Plate

V8 Aluminum Plate
V8 Aluminum Plate
V8 Aluminum Plate
V8 Aluminum Plate

V8 Aluminum Plate

V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate
V6 PC Plate

V6 PC Plate

V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate
V6 Brass Plate

V6 Brass Plate

V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate
V6 Aluminum Plate

V6 Aluminum Plate

Specs

Width128.8 mm
Length88.8 mm
Front Height12.8 mm  (without keycaps)
Back Height29.3 mm (without keycaps)
Feet Height2.4 mm
Angle5.2°
Weight500 g ± 10g (Fully Assembled Version)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
Mounting StyleTray Mount
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron G Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
