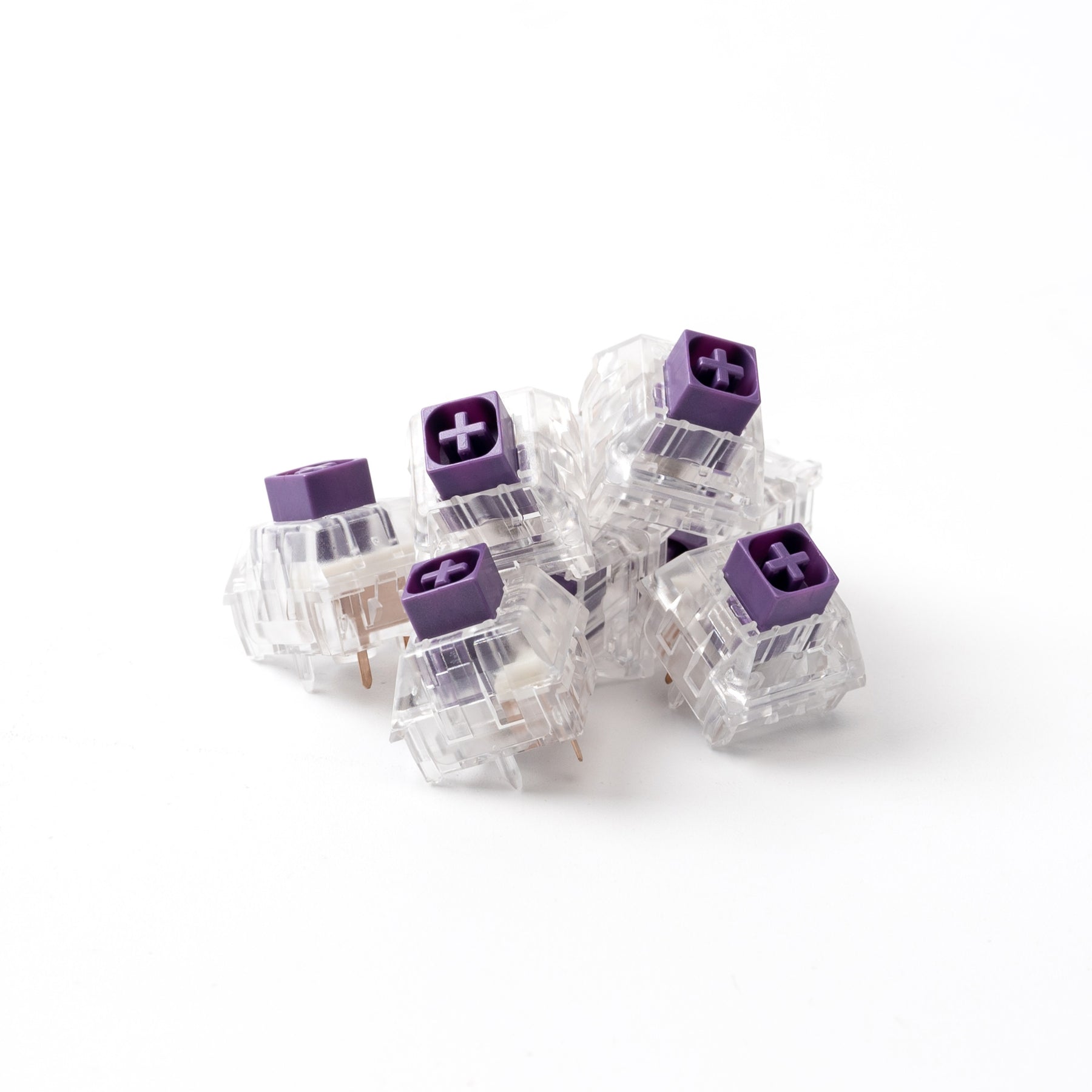

Kailh Crystal Royal Box Tactile Switch
Kailh Crystal Royal Box Tactile Switch - Royal / 110 Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kailh Crystal Royal Box Tactile Switch
Tactile Typing Feel
The Kailh Crystal Royal Box Switch is a tactile switch that features a crisp bump. It has an operation force of 45 grams, and a tactile force of 75 grams, and provides noticeable tactile feedback. It is an ideal option for those who prefer a tactile typing experience.
Double Dustproof & Waterproof Structure
By equipping this switch with a dust wall design and box structure, these Box switches have IP56 degrees of protection and prevent dust and water from causing corrosion.
Excellent Backlight Effect
This switch adopts a transparent housing to increase light permeability and provides prime lighting to the typist or gamer.
5-Pin Scheme
The 5-Pin structure provides stability and less wobbliness for this switch when pressed.
Product Structure
Feature And Specs
| Type | Tactile |
|---|---|
| Operation Force | 45±15 gf |
| Pre-travel | 1.8±0.4 mm |
| Return Force | ≥15 gf |
| Tactile Force | 75±10 gf |
| Total Travel | 3.6±0.3 mm |
| Sound Level | Medium |
| Operation Life | Up to 80M cycles |
| Suitable For | Midway gaming/office |
| Product Name | Crystal Royal Box Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | PC |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon PA66 |
| Slider | POM |
| Pins | 5-Pin |
| Factory Pre-lubed | No |
| SMD LED Support | Yes |
Compatible Keyboard:
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
