Kailh Box V2 Switch Set

SKU: G134
$56.00

Option
Quantity of one set

Notify Me When Available

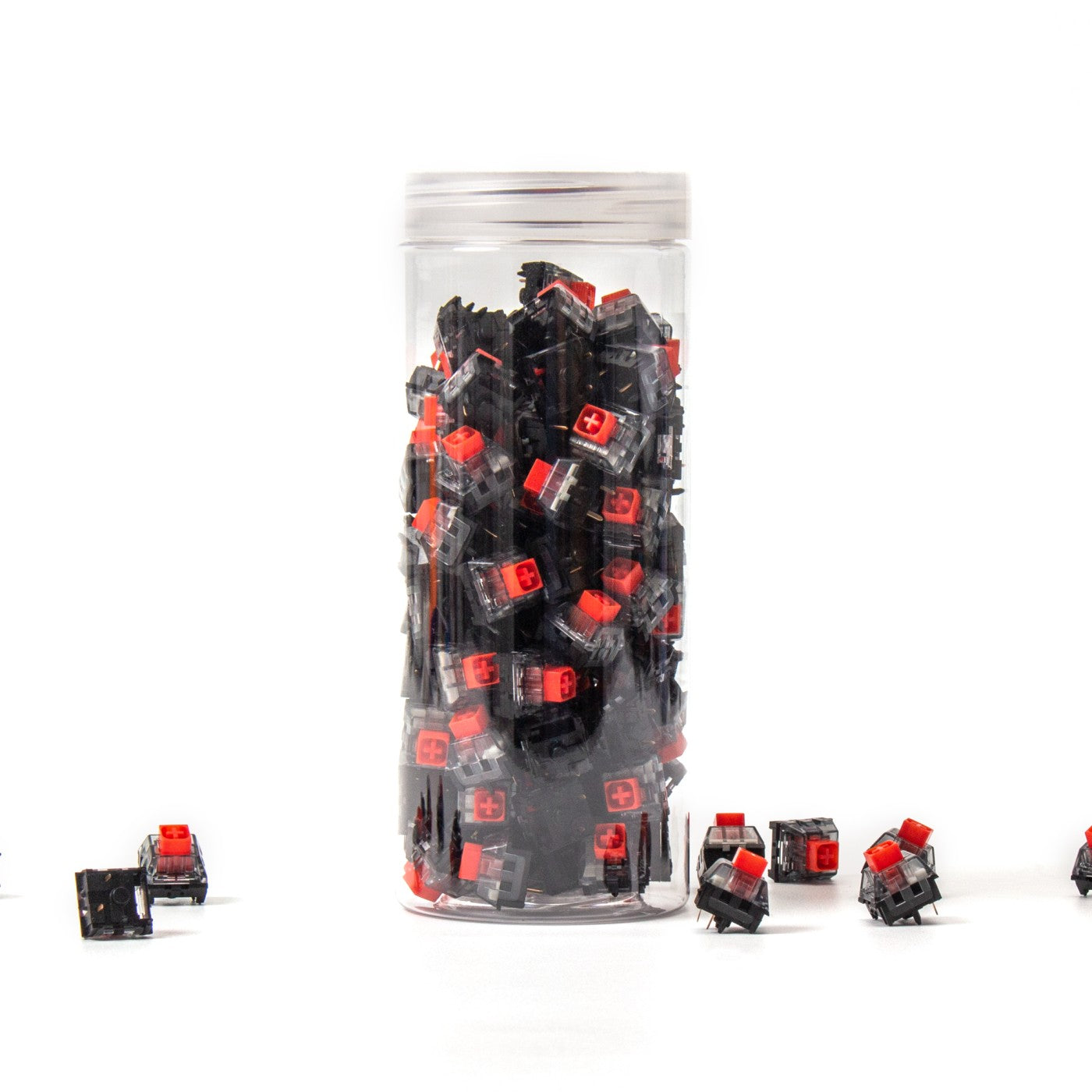

Each Switch Set comes with 110 switches and the bottle.
Please drop your email on "Notify Me When Available" if the product model is out of stock.

Optimized Structure And Greater Feel

The new Box V2 switch features a POM stem, black translucent cover, and solid black base with a 5-Pin positioning column. The LED slot of the cover is half-sealed to assure more light is transmitted. There are 2 small opens on the LED slot, It means that this switch is compatible with the 2-Pin LED and SMD-LED. Additionally, compared with V1, the Box V2 switch also has some changes in typing feel. The tactile feedback of Box V2 brown switch changes from the traditional tactile of V1 to heavy tactile and feels far stronger than V1.

Kailh Box V2 Switch Set

Factory Pre-lubed

The Box V2 switch is pre-lubed in the factory (excluding White switch) to help avoid unnecessary friction and increase the smoothness of the switch.

Kailh Box V2 Switch Set

Longer Gold-plated Spring

This switch uses a longer gold-plated spring allowing for a faster and stronger rebound and keeping this switch from rust and corrosion at the same time.

Kailh Box V2 Switch Set
Kailh Box V2 Switch Set

Double Dust-proof Structure

The dust wall design and box structure of this switch prevent dust and moisture and guarantee this switch to last about 80 million presses.

Product Structure

Kailh Box V2 Switch Set

Feature And Specs

BOX V2 RED

TypeLinear
Operation Force40±10 gf
Pre-travel1.8±0.4 mm
Return Force≥15 gf
Total Travel3.6±0.3 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/office
Kailh Box V2 Switch Set

BOX V2 BROWN

TypeTactile
Operation Force45±10 gf
Pre-travel2.0±0.4 mm
Return Force≥15 gf
Total Travel3.6±0.3 mm
Sound LevelMedium
Operation LifeUp to 80M cycles
Suitable ForGaming/office
Kailh Box V2 Switch Set

BOX V2 WHITE

TypeClicky
Operation Force45±15 gf
Pre-travel1.8±0.4 mm
Return Force≥15 gf
Total Travel3.6±0.3 mm
Sound LevelLoud
Operation LifeUp to 80M cycles
Suitable ForTypist
Kailh Box V2 Switch Set
Product NameKailh Box V2 Switch
StemPOM
Top HousingPC
Bottom HousingNylon
ContactComposite gold
SpringSpring steel
Protecting CoverNylon
SliderPOM
SMD LED SupportYes
Pins5-Pin
Factory Pre-lubedYes (excluding White switch)

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V and V Max series, Q, Q Pro and Q Max series Keychron keyboards, and L and P Series Lemokey keyboards.
