Gateron Jupiter Switch Set
Gateron Jupiter Switch Set
Gateron Jupiter Switch Set

Gateron Jupiter Switch Set

G196

Regular price $46.00
/
3 in stock

Option
Quantity of one set

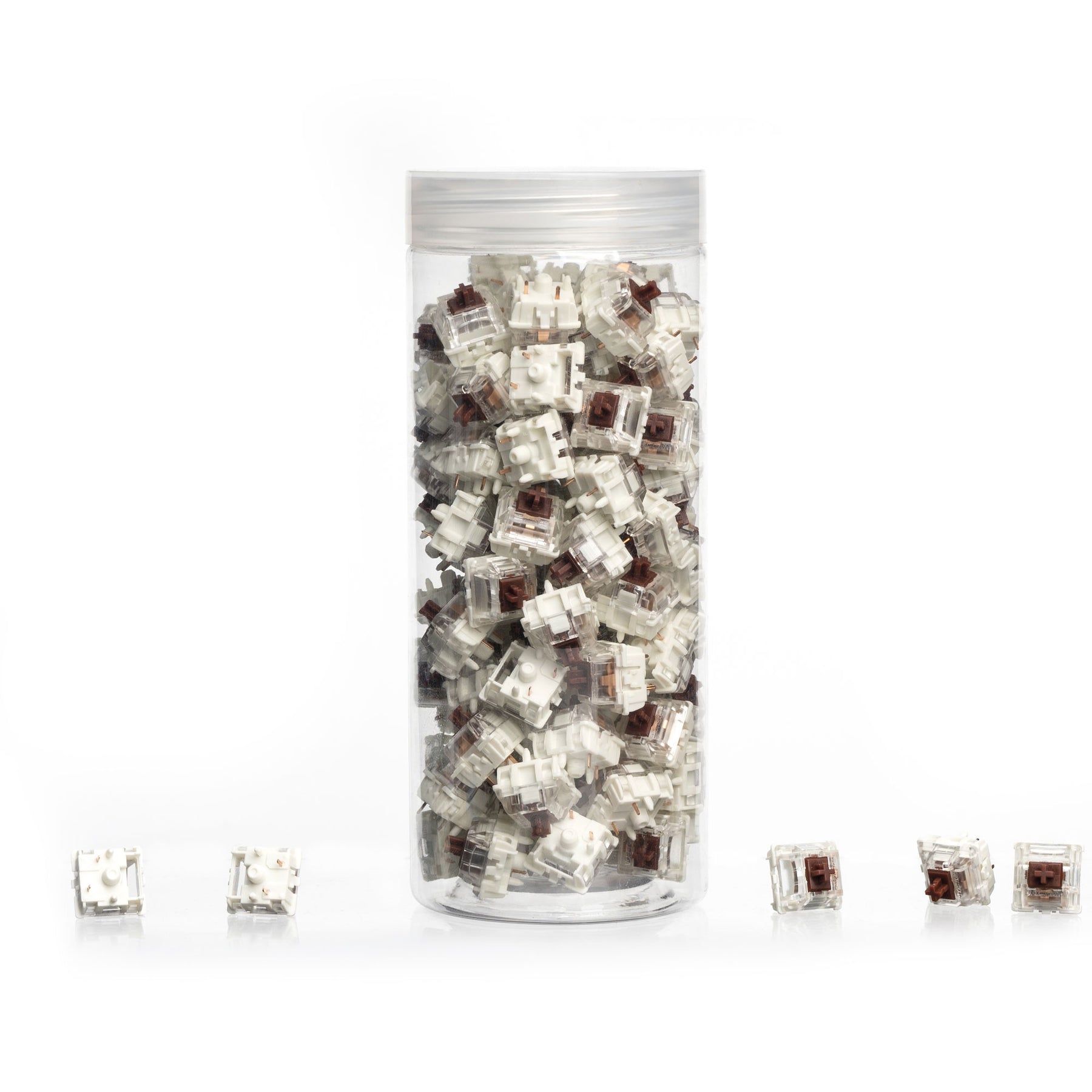

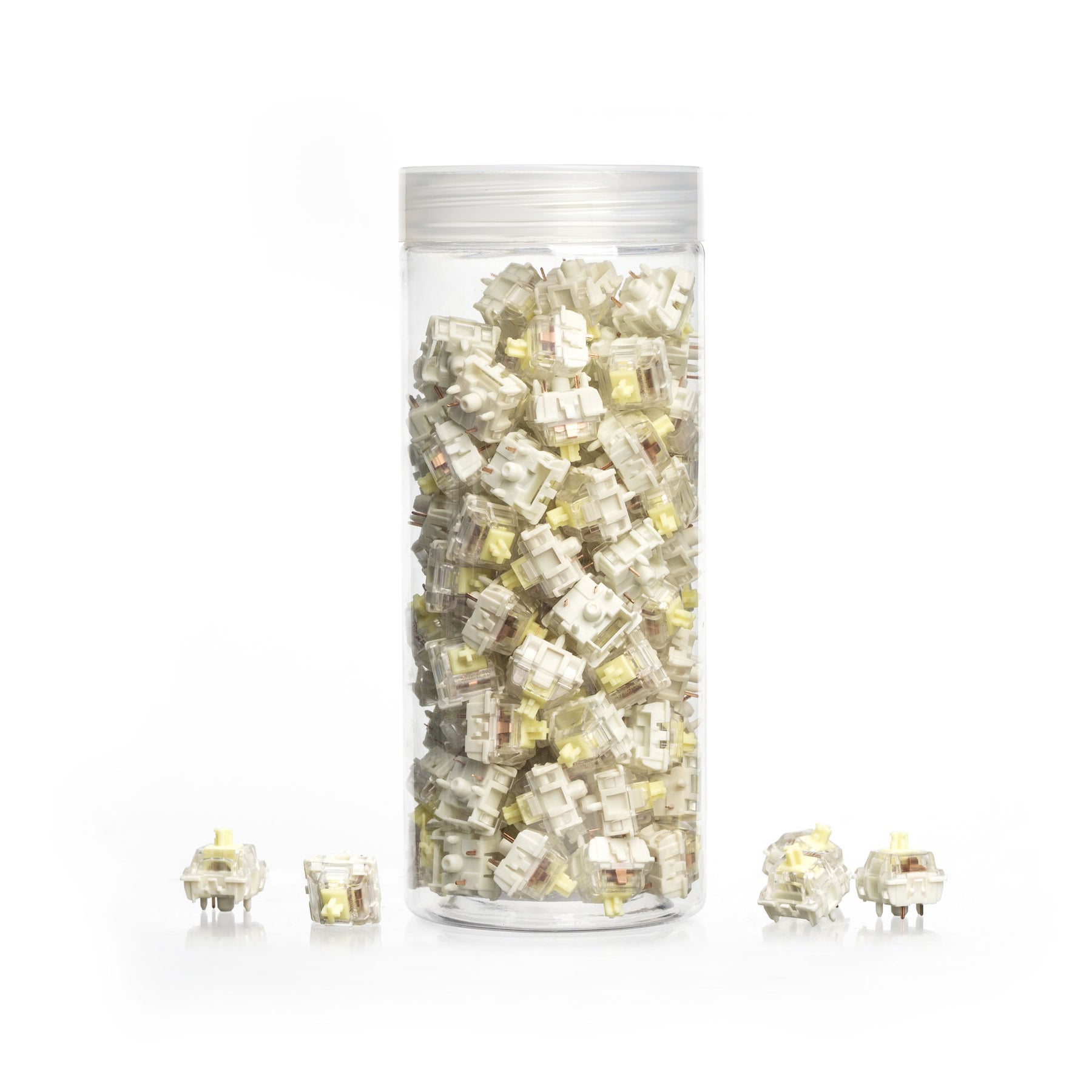

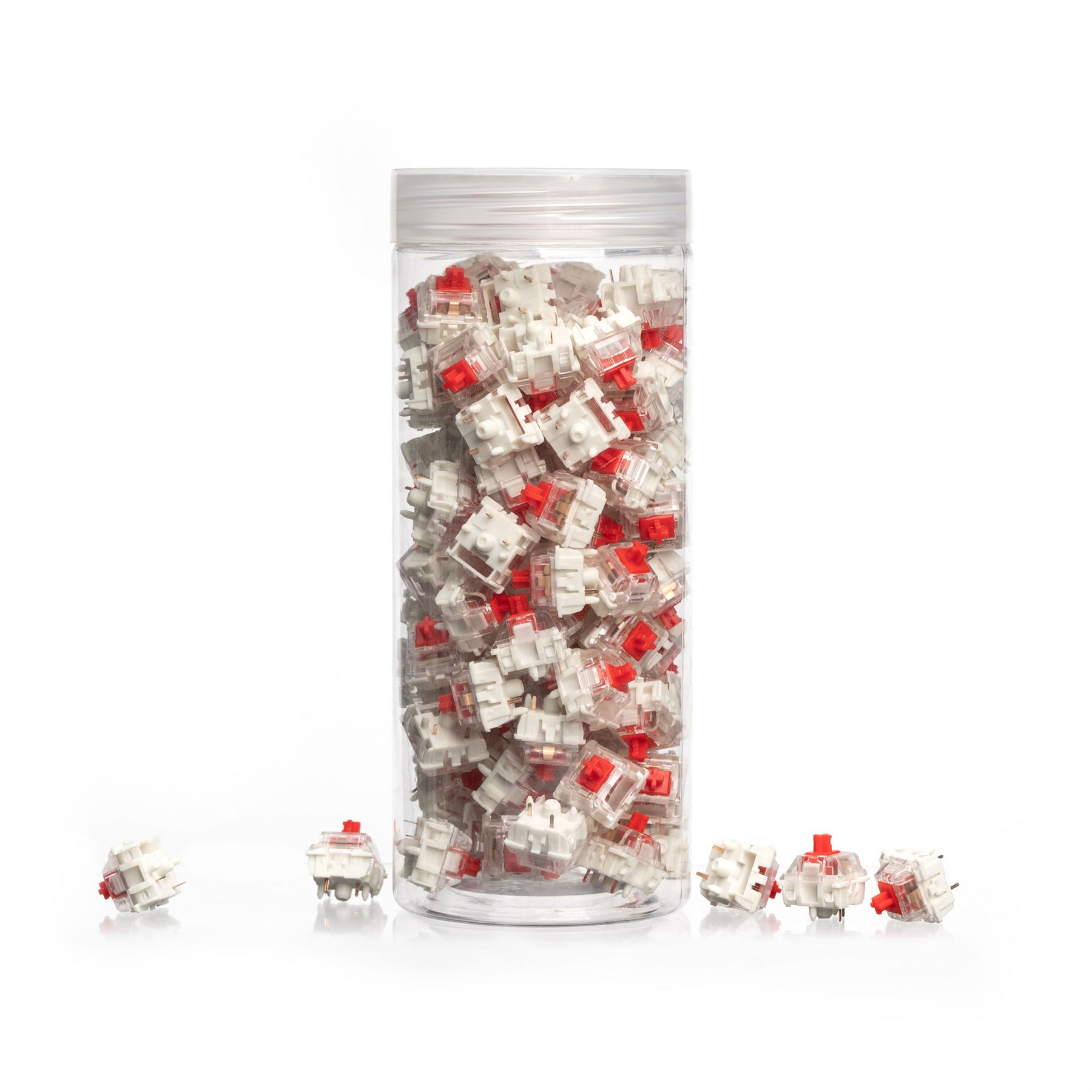

Each Gateron Jupiter Switch Set comes with 110 switches and the bottle.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Keychron Exclusive

Gateron Jupiter Switch

We’re extending the gaming experience, Keychron has teamed up with Gateron to introduce our exclusive Jupiter Switch to the market. Jupiter switches differ from Gateron’s conventional switches with their brand new molds with higher precision and softer backlight effect. Their housing base also has precisely molded nylon and high-quality springs inside to bring a satisfying typing feel.

Inside Gateron Baby Raccoon Linear Switch
Gateron Jupiter Switch

Premium Typing Experience

The Baby Raccoon Switch uses a 20mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use

Gateron Jupiter Banana switch provides earlier tactile bumps and stronger tactile feedback than a regular brown switch. It features a two-stage spring to provide a stronger return and a more consistent feel.

Gateron Jupiter Switch Features

Softer Backlight Effect

Compared to regular Gateron switches, the Jupiter switch is crafted with a unique LED diffuser in its transparent housing cover to allow the light to disperse more and softer while maintaining high RGB backlight transmittance for a better backlight effect.

Gateron Jupiter Switch
Gateron Jupiter Switch Backlight
Gateron Jupiter Brown Switch

Stable 5 Pins

The "Double-Core" robust 5 pins provide better stability and durability for the switch, guaranteeing it can last up to 80 million presses.

Factory Pre-Lubed

The Gateron Jupiter switches are pre-lubed in the factory to reduce friction and wear. They also deliver a smoother typing experience.

Gateron Jupiter Brown Switch

Product Information

Red Switch

TypeLinear
Operation Force45±15 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingVertical, light pressing force, soft rebound
Gateron Jupiter Red Switch Force Travel Diagram

Brown Switch

TypeTactile
Operation Force55±15 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingBump, moderate pressing force, clear rebound
Gateron Jupiter Brown Switch Force Travel Diagram

Banana Switch

TypeTactile
Operation Force59±10 gf
Pre-Travel2.0±0.6 mm
Total Travel3.4 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingCrisp bump, tactile bump at top
Gateron Jupiter Banana Switch Force Travel Diagram

Specs

Product NameGateron Jupiter Switch
StemPOM, MX stem
HousingPC material (Cover), Nylon material (Base)
SpringSpring steel
Pins5-Pin switch
LubricationYes
SMD LED supportYes

PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.

Gateron Jupiter Switch Layout Of PCB

Compatible Keyboards

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
