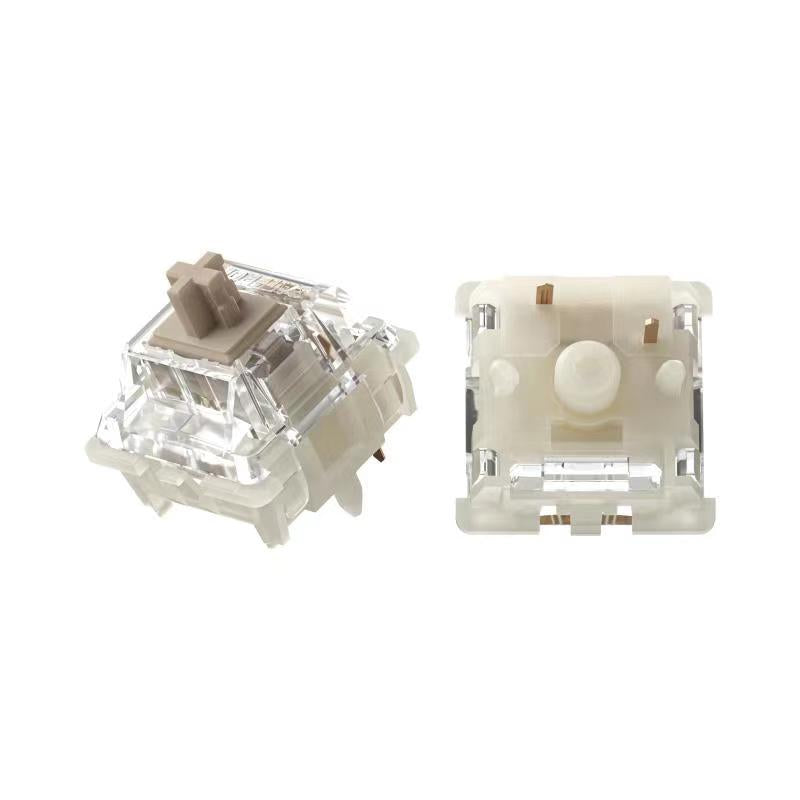

Gateron Baby Raccoon Linear Switch

Shorten Total Travel And Early Bottom-out

The Gateron Baby Raccoon Switch is a linear switch that features a 0.64mm stem, which is longer than conventional switches and shortens the total travel to 3.6±0.2 mm for an early bottom-out feel. Taking into account the feel and sound, it also makes the pressing sound more concentrated and delivers a smooth and extraordinary typing experience.

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use

2.0 Condenser Light Hole Scheme

It incorporates the G Pro 2.0 switch's condenser light hole and light guide column design to make the light more concentrated, perfect for displaying RGB lighting. It is compatible with SMD-LED and more than 99% of keycaps on the market.

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience.

Product Information

Baby Raccoon Switch

Type	Linear
Operation Force	55±8 gf
Pre-Travel	2.0±0.5 mm
Total Travel	3.6±0.2 mm
Sound Level	Low
Operation Life	Up to 80M cycles
Suitable For	Gaming/ Office
Hand feeling	Vertical, strong pressing force, hard rebound

Specs

Product Gallery

Compatible Keyboards

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
